10M to 6GHZ Active Frequency Mixer, Active Mixer Module, Double Balanced Frequency Mixer

SpecificationItem Type: Active Mixer ModuleMaterial: PCBPower Supply: DC+ 5V at 80mA , power supply anti reverse connection protection.RF IN, RF LO Input Frequency Range: 10 to 6GHZ,Output Frequency Range RF IF: LF 600MHZ;Input And Output Impedance: 50 ohms;Only for Balun is used for output, and TCM 63AX+ is not welded for inputFeatures:Broadband up converter, down converterPower conversion gain 1.8 dBBroadband RF, LO, and IF portsSingle sideband noise factor (NF) is 9.75 dBInput IP3: 28.5 dBmInput P1dB: 13.3dBmTypical LO Drive: 0 dBmSingle Power Operation: 5 V, 130 mAAdjustable bias for low power operationWorking Temperature: -40℃ to +85℃Package List：1 × Active Mixer Module

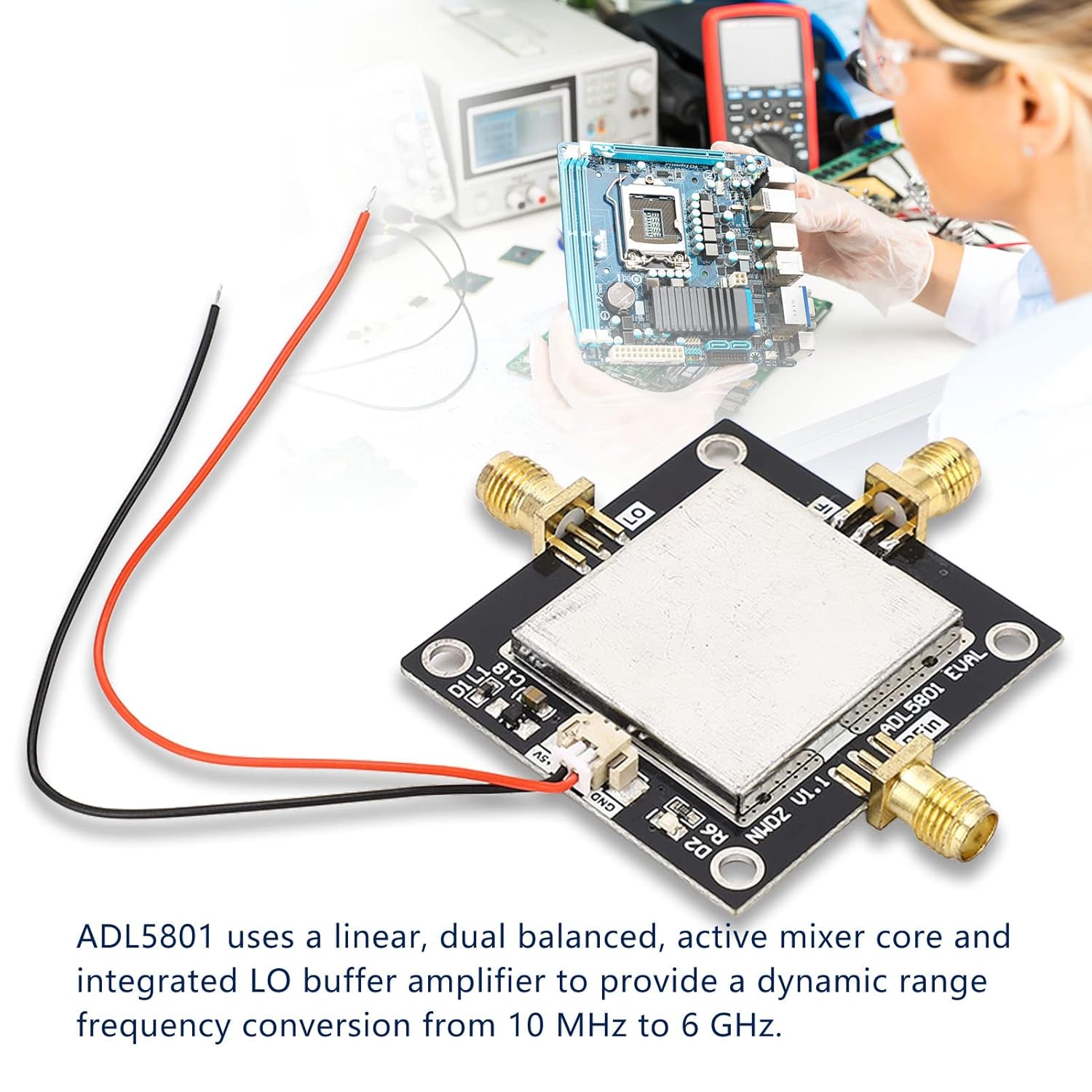

• THE ACTIVE FREQUENCY MIXER ADOPTS THE ADVANCED ADL5801 CORE: It features a linear dual-balanced active mixer design. This tool is specifically designed for high dynamic range frequency conversion, covering a frequency range from 10 MHz to 6 GHz. It is an ideal choice for communication and signal processing applications, where efficient conversion and minimal interference are of crucial importance
• LINEARIZATION ARCHITECTURE: The active mixer adopts a proprietary linearization architecture, which can enhance the input IP3 performance at high input levels. This feature ensures excellent linearity, making it particularly useful in demanding applications where cellular signals need to be maintained without compromising dynamic performance
• BIAS ADJUSTMENT FUNCTION: The mixer module includes a convenient bias adjustment function that allows for fine-tuning of input linearity, SSB noise figure, DC current, and a single control pin. This feature is particularly valuable in cases where adaptive bias control is required, such as in the presence of large blocking signals
• WORK DETAILS: The balanced active mixer design ensures excellent LO to RF and LO to IF leakage performance, typically better than -40 dBm. This can generate clearer signals and minimize signal leakage, which is crucial in high-precision communication applications
• FINE WORKMANSHIP: Manufactured with advanced IC processes using SiGe technology, the active frequency mixer offers top-notch performance in a compact 4mm x 4mm LFCSP package. Its designed operating temperature range is from -40 °C to +85°C, ensuring reliable performance even under extreme conditions
