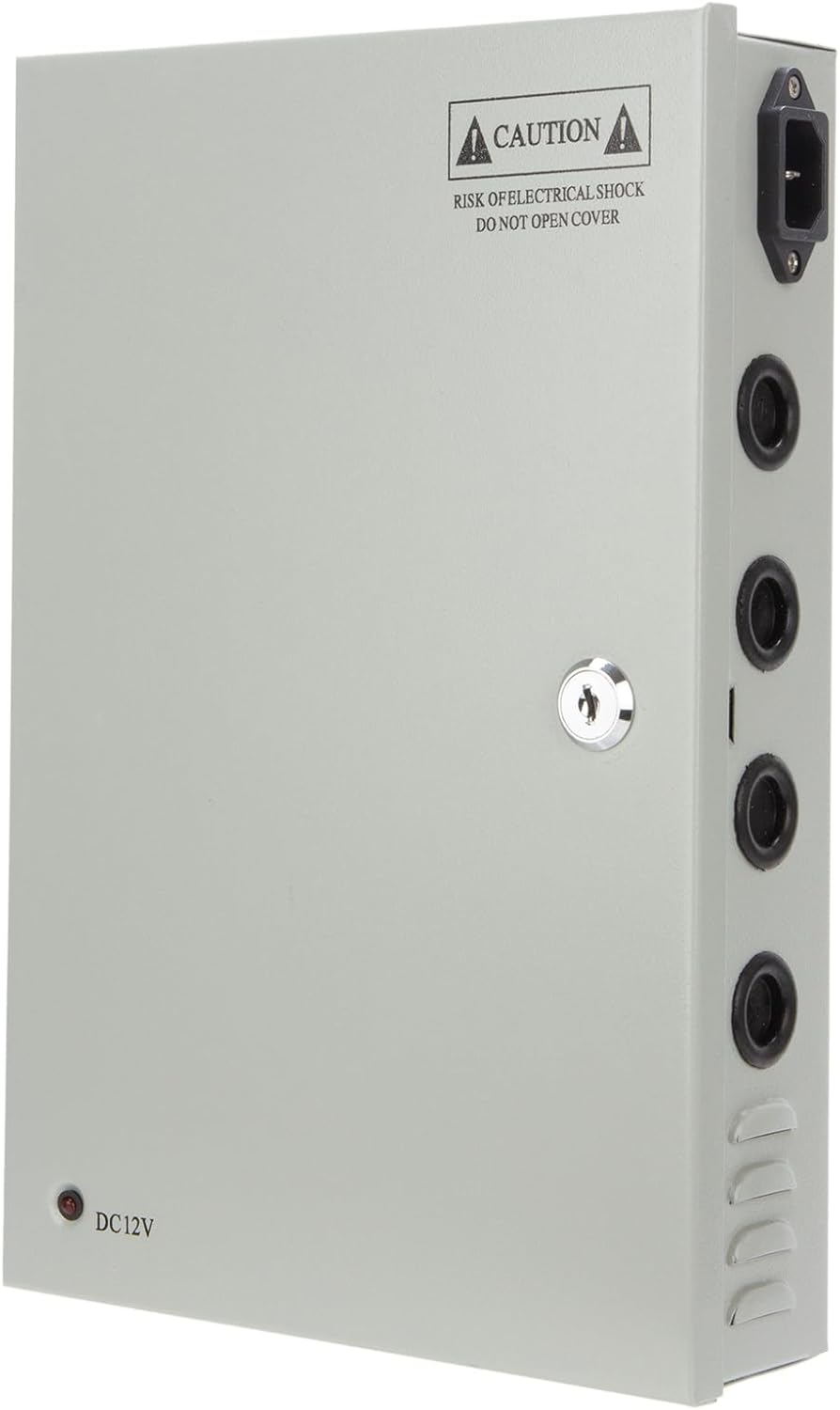

18 Channel Port 12V DC 30 Amp Amper Glass Fuse Distributed Power Supply Box for CCTV DVR Security System and Cameras
Product details
| Management number | 212394628 | Release Date | 2026/04/06 | List Price | $24.00 | Model Number | 212394628 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

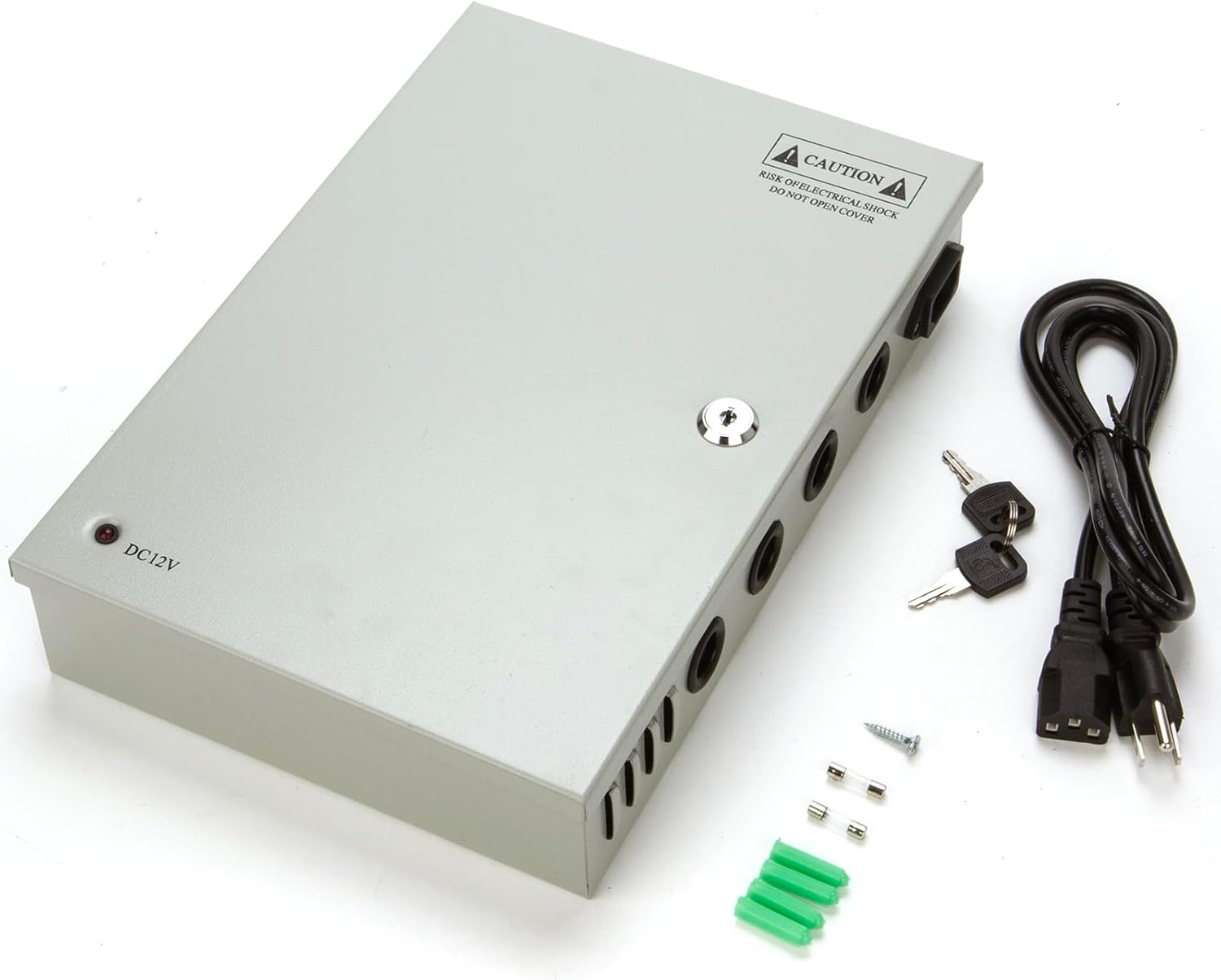

Rated power: 360W Input voltage: AC110/220V Frequency: 50/60Hz Input current: 2.5A/AC110V,1.5A/AC220V Efficiency: >75% Output channels: 18 channels Output voltage: DC12V Voltage regulation: 10.8V～13.2V Output current: 30A Overvoltage protection: ＞115%～135% Overload protection: ＞105%～150% Working temperature: 0°C ～ +40°C Storage temperature: -20°C ~ +60°C IP rating: IP45 Lifespan: 2 years Material: Iron Item size: 31.6 * 23.4 * 6.2cm / 12.44 * 9.21 * 2.44in (L * W * H) Item weight: 2.55kg / 5.62lb Package size: 32 * 24.8 * 6.7cm / 12.60 * 9.76 * 2.64in (L * W * H) Package weight: 2.8kg/6.17lb 1 * LED Power Supply Box 1 * Installation Kit 2 * Keys 1 x power cord
- Dual Input Voltage: this power supply box converts AC110/220V to DC 12V.
- Tips: When the temperature exceeds 60 degrees, the fan will automatically work,Use it with For Security Cameras, DVR's etc
- Power Box For electronic devices, like CCTV security cameras.CAN Support UP TO 18ch Cameras.
- Individual LED indicator for each out put, every channel is protected with Glass fuses
- Powering multiple cameras could Not be easier! Xenocam's line of Professional CCTV Power Supplies give installers what they expect when it comes to power supplies quality and reliability
| Brand | XENOCAM |
|---|---|
| Wattage | 360 watts |
| Model Name | 18 Channel |
| Form Factor | Desktop |
| Manufacturer | XENOCAM |
| Model Number | AD-S12300A |
| Cooling Method | Air |
| Current Rating | 2.5 Amps |
| Number of Fans | 1 |
| Output Wattage | 360 Watts |
| Mfr Part Number | AD-S12300A |
| Compatible Devices | Camera |
| Connector Quantity | 18 |
| Maximum Input Voltage | 220 Volts (AC) |
| Minimum Input Voltage | 110 Volts (AC) |
| Upper Temperature Rating | 40 Degrees Celsius |
| Connector Type Used on Cable | AC plug (input), DC barrel jack (output) |
