3/4" Lathe Turning Tool Holder S20R-MWLNR08 MGIVR2016-2 MGIVL2016-2 MTJNR1616H16 MWLNR1616H08 MCLNR1616H12 with 10PCS WNMG432 2PCS MGMN200-G NC3020 Indexable Carbide Turning Inserts

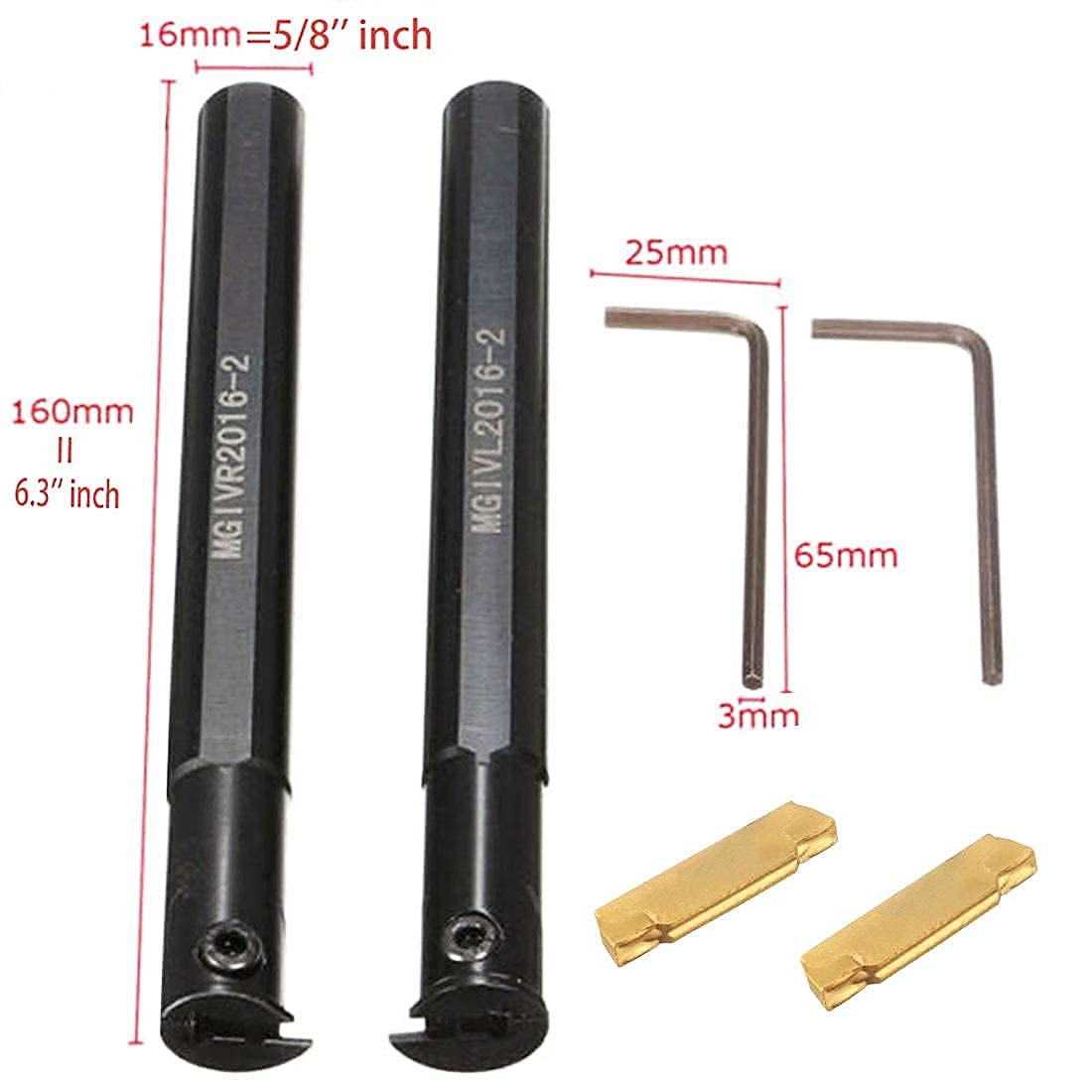

Package:1PC S20R-MWLNR081PC MGIVR2016-21PC MGIVL2016-21PC MTJNR1616H16 1PC MWLNR1616H081PC MCLNR1616H1210PCS WNMG4322PCS MGMN200-G NC30203PCS WNMG432, CNMG432, TNMG332--------MTJNR1616H16Shank Diameter length×width: 16*16 mmOverall length：100 mm≈3.93 inchMain declination : 93ºShim : ST 1603Pin : MCT513Clamp : HL 1814Screw:MCS625Wrench : L2.0 ,L3.0Inserts : TNMG 160408 / TNMG 332--------MWLNR1616H08Shank Diameter length×width: 16*16 mmOverall length：100 mm≈3.93 inchMain declination : 95ºShim : SW 0804Pin : MCT617Clamp : HL1814Screw : MCS625Wrench : L2.5 , L3.0Inserts : WNMG 080408 / WNMG 432--------MCLNR1616H12Shank Diameter length×width: 16*16 mmOverall length：100 mm≈3.93 inchMain declination : 95ºShim : SC 1204Pin : MCT617Clamp : HL1814Screw : MCS625Wrench : L2.5 , L3.0Inserts :CNMG 120408 /CNMG 432--------S20R-MWLNR08Material : alloy steel Coating : nickelCutting direction : right handShank Diameter × Overall Length : 3/4 "×8"Pin : MCT 613 Clamp : HL1810 wrench : L3.0-------MGIVR2016-2Shank Diameter: (5/8" inch / 16*16mm)Overall Length：( 6.3" inch / 160mm)--------MGIVL2016-2Shank Diameter: (5/8" inch / 16*16mm)Overall Length：( 6.3" inch / 160mm)

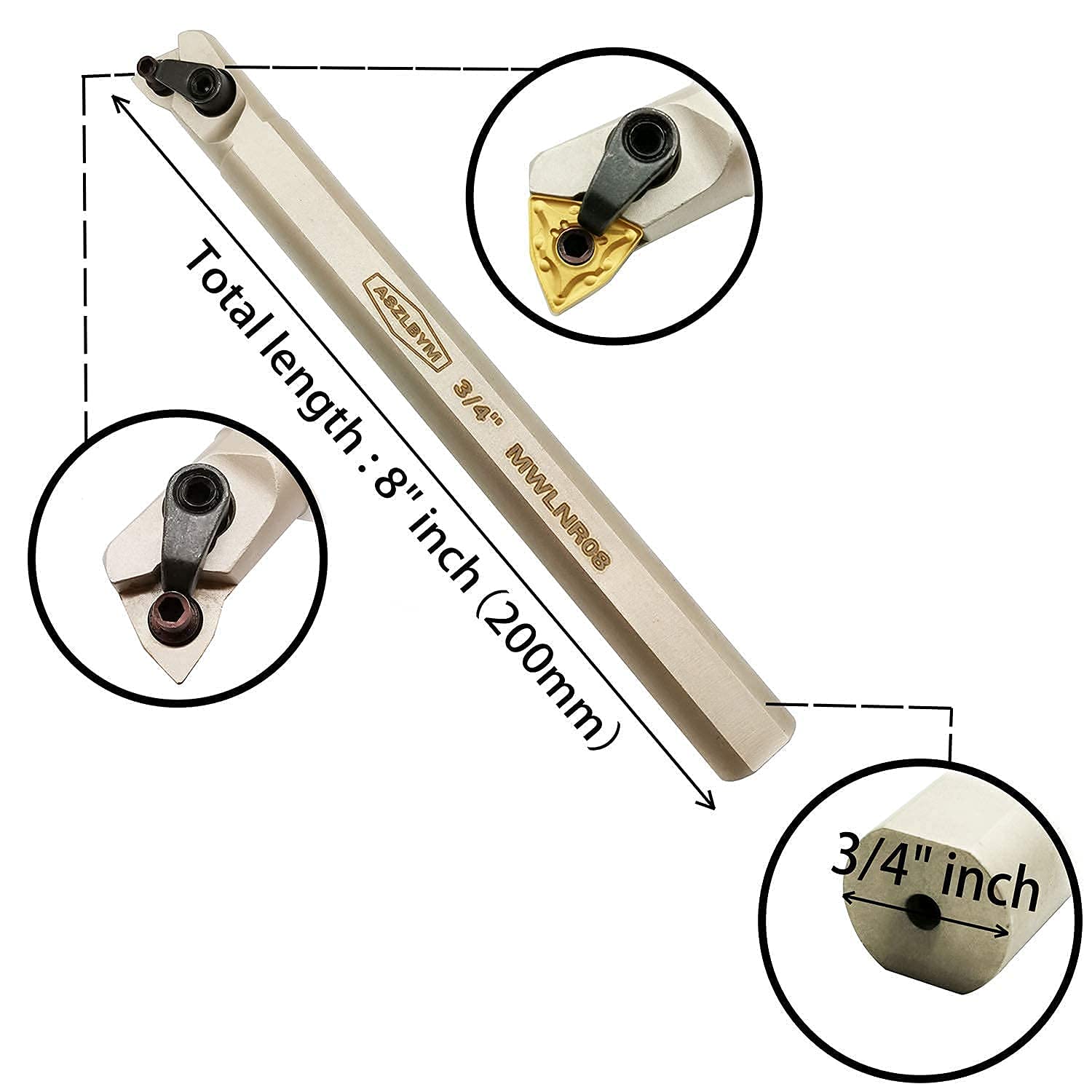

• S20R-MWLNR08 turning boring bar : the cutting direction：right hand , the turning tool bar is made of high-quality alloy steel with Nickel Cotated,which can effectively improve the wear resistance, corrosion resistance and stability of the turning tool bar, for long time use.
• Grooving holder : Each tool holder is black oxidized smooth surface and tool hardness (HRC 48 degrees up and down) and precision are up to the first grade.
• Insert : Turning inserts exquisite workmanship, high strength, high toughness, stable and durable.
• Each tool holder is black oxidized smooth surface and tool hardness (HRC 48 degrees up and down) and precision are up to the first grade.
