80 Meters, 10G SFP+ to RJ45 Modules, 2.5G/5G/10GBase-T Ethernet Copper RJ45 to SFP+ Transceiver Compatible for Ubiquiti UF-RJ45-10G, Plugin 10Gb SFP+ Port Switch/Router
Product details
| Management number | 216138971 | Release Date | 2026/04/19 | List Price | $16.00 | Model Number | 216138971 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

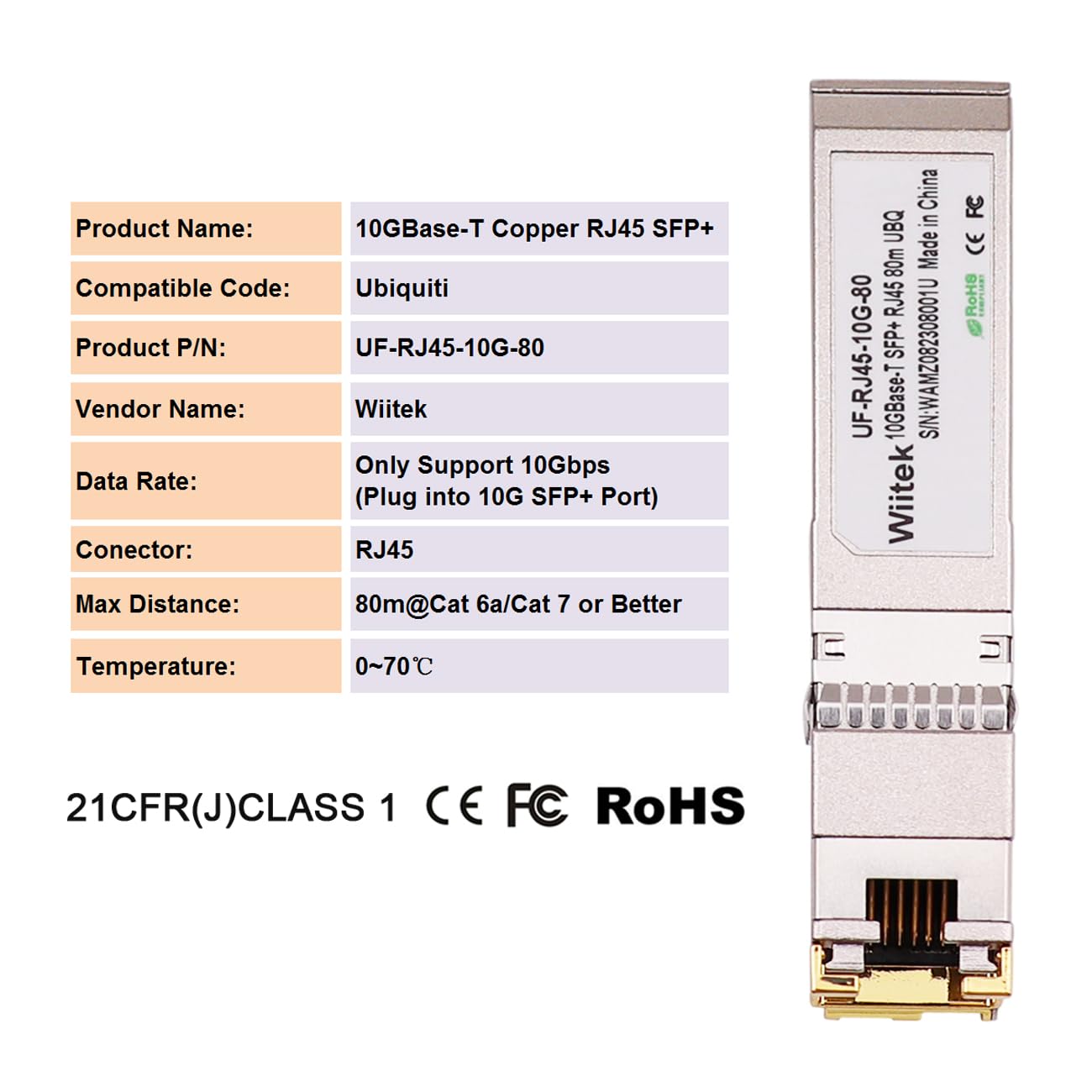

Ubiquiti UF-RJ45-10G Compatible 10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver 80-Meter Features ◆ Supports Links up to 80m using Cat 6a/7 or Better Cable ◆ SFF-8431 MSA Compliant ◆ IEEE 802.3az and 802.3an Compliant ◆ Hot-pluggable SFP+ footprint ◆ TX Disable and RX Los function ◆ Fully metallic enclosure for Low EMI Emissions ◆ +3.3V single power supply ◆ Built-in Broadcom chip, Max. Power Consumption 2.5W ◆ Compact RJ-45 connector assembly ◆ Access to physical layer IC via 2-wire serial bus ◆ MDI/MDIX Crossover ◆ Multiple Loopback Modes for Testing and Troubleshooting ◆ Built-in Cable Monitoring and Link Diagnostic ◆ Unshielded and Shielded cable support ◆ Operating case temperature range of 0°C to +70°C Applications ◆ 10 Gigabit Ethernet over Cat 6A/Cat 7 or Better cable
- COMPATIBILITY:This 10G Copper SFP+ Copper RJ45 Ethernet Adapter Transceiver is 100% compatible for Ubiquiti UF-RJ45-10G, connecting 10g ethernet Switch, 10G SFP+ network interface card (NICs) , 10G SFP+ media converter etc;

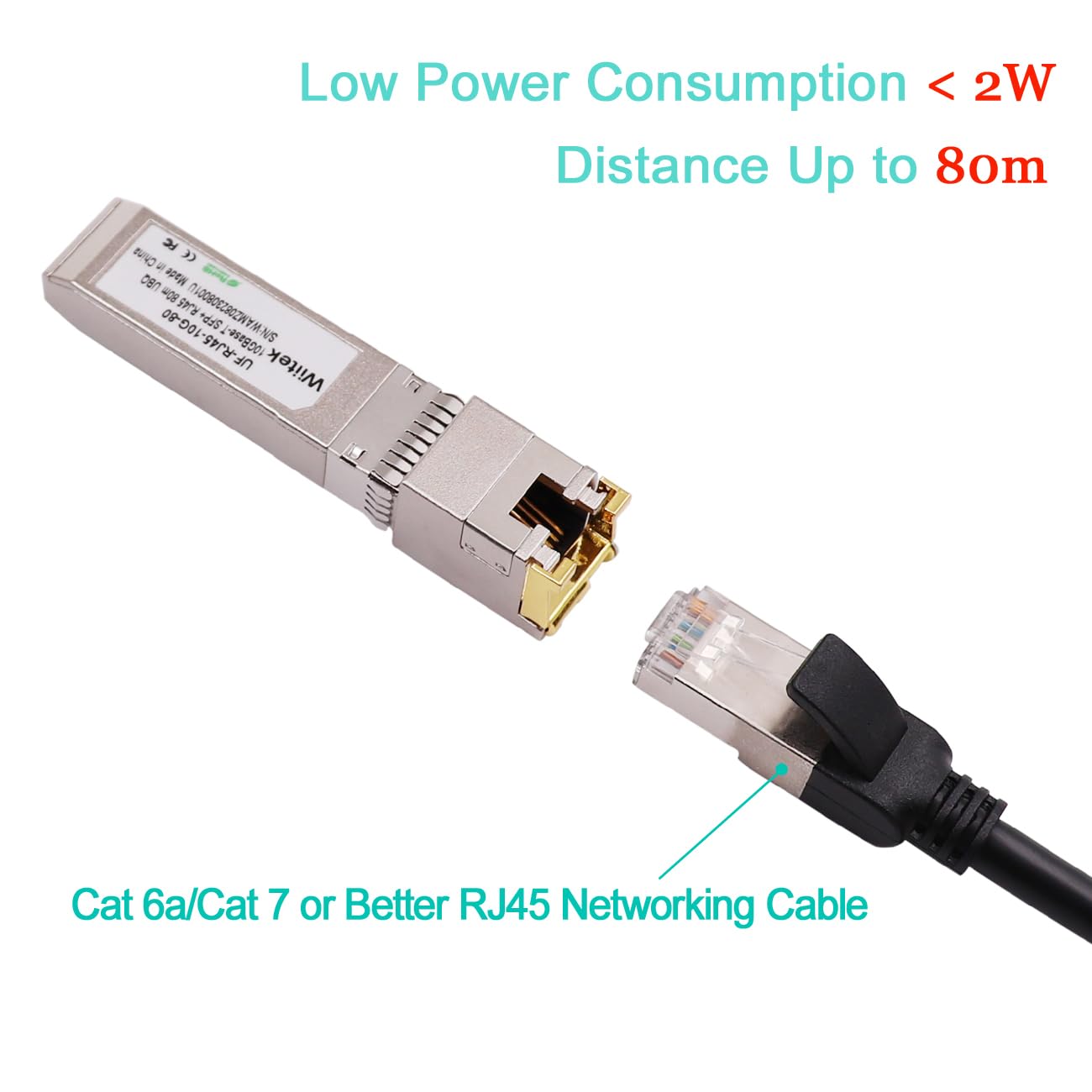

- CABLE DISTANCE:10GBase-T SFP+ RJ45 Copper Module supports Links up to 80m using Cat 6a/7 or Better Cable , need to plug into 10G SFP+ Ports;
- Low Consumption: Built-in Broadcom chip, Max. Power Consumption 2.5W;
- PROTOCOLS: 10Gb RJ45 SFP Compatible SFF-8431 MSA , IEEE 802.3az;
- Each Module is individually 100% tested on the 10G SFP+ Switch Connecting with RJ45 networking cables before shipping;
- HOT SWAPPABLE:Hot-swappable transceivers that plugs into an 10Gb SFP+ port, plug and play, no need to power down if installing or replacing;
- This 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections;
- SUPPORT: 30 Days Free-returned, 1-year Product Quality Assurance, Free Lifelong Technology Support.
| UPC | 717994274040 |
|---|---|
| Color | For Ubiquiti |
| Model | UF-RJ45-10G |
| Frequency | 10 GHz |
| Brand Name | Wiitek |
| Cable Type | Ethernet |
| Item Shape | Round |
| Model Name | UF-RJ45-10G |
| Unit Count | 1.0 Count |
| Item Weight | 39 Grams |
| Manufacturer | Wiitek Technology |
| Connector Type | Sfp+ |
| Number of Pins | 16 |
| Outer Material | Zinc Alloy |
| Maximum Voltage | 3300 Millivolts |
| Number of Items | 1 |
| Connector Gender | Male-to-Female |
| Specification Met | CE, FCC, RoHS |
| Compatible Devices | Router, Server, Switch |
| Data Transfer Rate | 10 Gigabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Warranty Description | 3 Years Product Warranty, Lifelong Technical Support |
| Customer Package Type | sealed anti-static bag |
| Compatible Phone Models | No Compatible Phone Models |
| Connectivity Technology | SFP+ to RJ45 |
| Ethernet Cable Category | Cat 7 |
| Recommended Uses For Product | Enterprise networking for LAN applications, networking places using copper connections |
| Other Special Features of the Product | 2.5GBase-T/5GBase-T/10GBase-T compatible, Low Power Consumption Below 2W, RJ45 Cable length support up to 80m |
