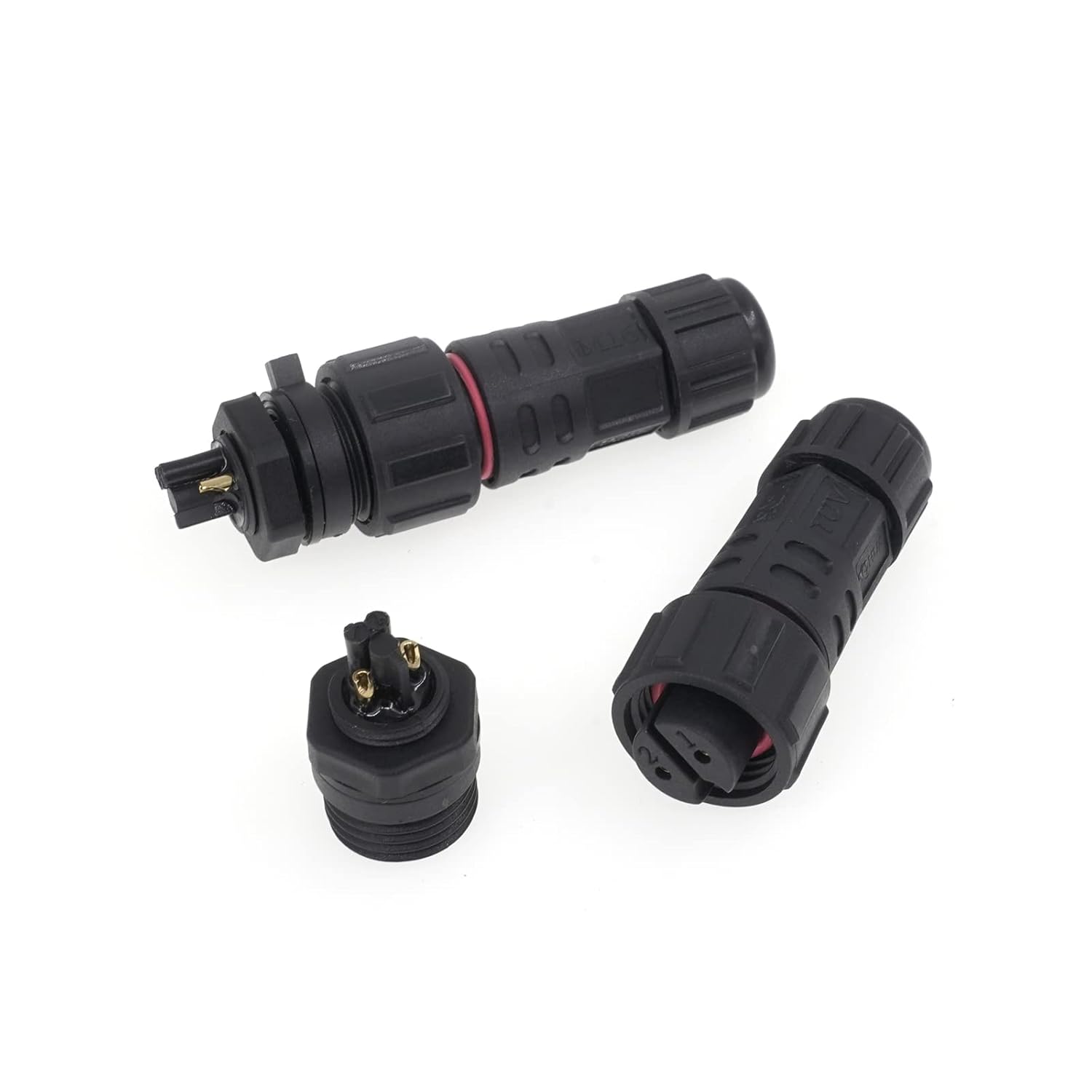

AOHUA IP68 Waterproof Connector (5-Pack), M16 2-Pin Industrial/Aviation Connector, (300V/10A) Female Socket & Rear Male Panel Mount for Outdoor Electrical Wire Range Ø4.5-7.5mm, CE, UL, TUV, ROHS

M16 wire to rear male pane connector technical specifications: * Certification: UL TUV CE IP67 ROHS certification * Packing: 5 set pack ( Comes with 2 sets of different sized grommets to accommodate different size wires. ) * Cable Range:4.5-6.5mm/6.5-7.5mm ( If you use a cable that is too thin, then the seal won't even cover IP67!) * Waterproof rating: IP67 advanced waterproof connector * Rated voltage: ≤ 300V * Rated current: ≤ 10A * Working Temperature: -40°C~105°C * Material: plastic (nylon), seal ring (silicon) * Colour: Black * Connection method: The soldering plug is easy to install, male and female can be separated and easy to install. * Scope of application: connectors are suitable for quick connection of garden and outdoor displays, floor heating, beacons, cruise ships, LED billboards, LED tunnel lights, LED street lights, external wiring, etc. * USAGE: Twist the port of the waterproof connector, insert the wire directly, soldering with an electric soldering iron to secure the wire, and then close the cap. Please make sure to connect the wire correctly. * Note: when finished, check that all nuts are tight. Inserted to panel from outside and screwed from inside. （Rear Panel ）Dust cap is without a certificate.

• ✅【Packaging】: Each pack includes 5 sets of M16-2 pin waterproof wire connector with 2 sizes of grommets (Ø4.5-5.5mm & 5.5-7.5mm)--making it suitable for most common power cords. This 2-pin connector, featuring the design of Female Socket & Rear Male Panel, meets the needs of multi-scenario installations, facilitating efficient procurement and replacement for outdoor electrical setups.
• ✅【Specifications】 ⚡Model: AH-M16-1002FMR/MFZ01112 ⚡Cable Diameter:Ø 4.5-7.5mm (two grommet sizes included) ⚡Wire Gauge:≤ 1 mm² ⚡Voltage Rating: AC/DC ≤300V ⚡Current Rating：≤10A ⚡Temperature Range: -40°C to 105°C ⚡Materials: Nylon shell with silicone seal and copper terminal ⚡Waterproof Rating: IP67/IP68(dustproof and water-resistant) ⚡Certified: CE/ROHS ⚡Mechanical Life: 3000 mating cycles. Batch customization in multiple specs available. Details: consult AOHUA customer service.
• ✅🔌【Certification】This waterproof led connector has CE & IP68 & ROHS & TUV certificatesfor electrical safety.Nylon shell with silicone seal resists corrosion and UV damagePerfect for 2 pin connector needs in marine, automotive, and industrial environments Note:The 2 pin connector is waterproof and dustproof.If you use a cable which is too thin, then the seal won't even cover IP68!
• ✅【Easy Installation】: Featuring a wire connection type of soldering, this 2-wire connector boasts an exceptionally straightforward installation process. The design of Rear male panel Mount & female sockets is applied to various electrical scenarios. Simplified settings ensure user friendliness for both professionals and regular users.
• ✅【Industrial & Professional Applications】: Widely used for LED billboards, tunnel lights, road landscape lighting, outdoor displays, garden lights, and spike lights. Suitable for coastal/outdoor/mining projects, solar-wind systems, solar water heaters, and various machinery. Serves as a reliable electrical connector for extension cord repair and outdoor junction box setups.
