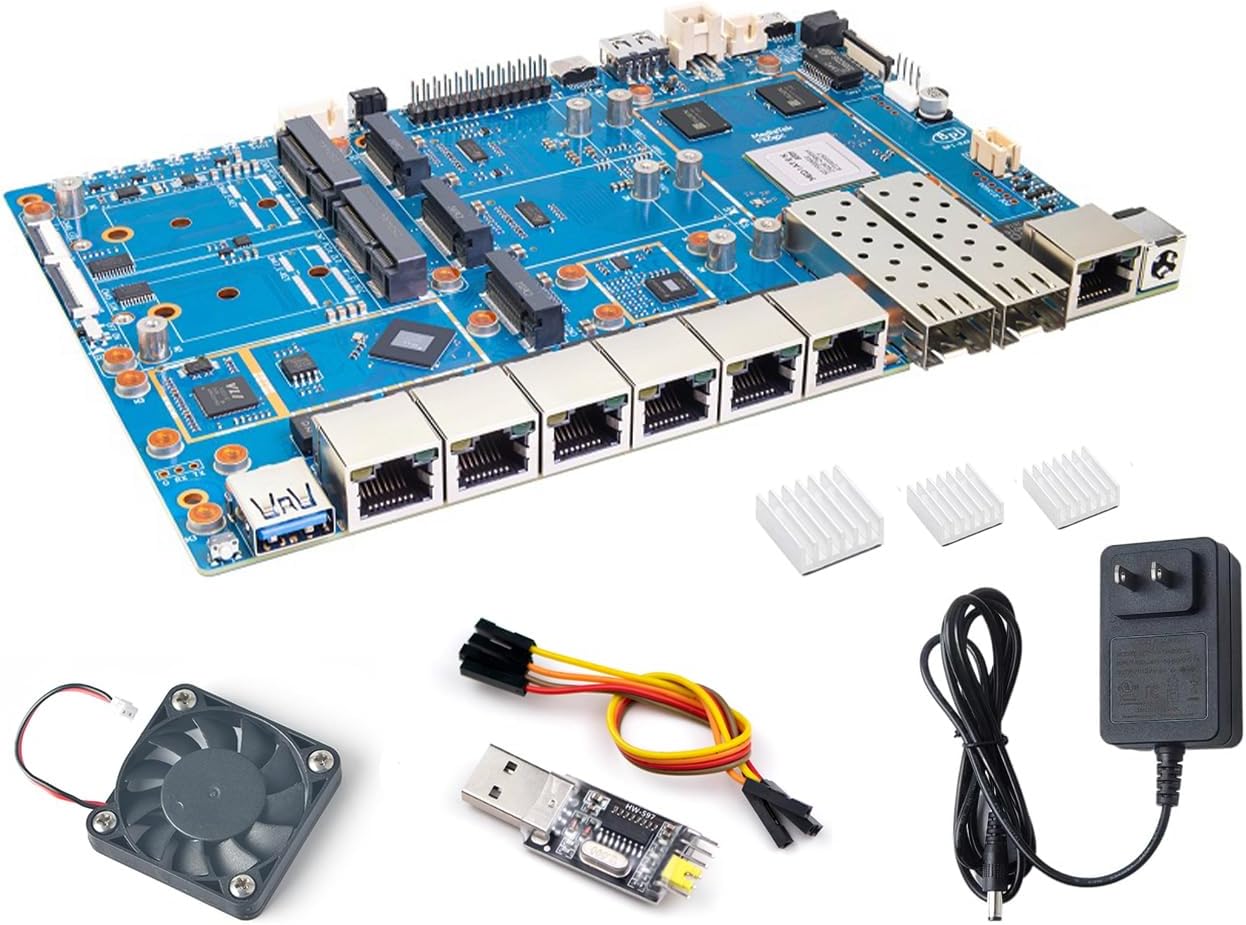

Banana Pi BPI-R4 Pro 8X/4E WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, MediaTek MT7988A30K DMIPS SoC - 2X 10GbE SFP&RJ45, 4X 2.5GbE LAN for NAS Smart Home Gateway (Bundle3, 8X)
Product details
| Management number | 209074926 | Release Date | 2026/03/29 | List Price | $36.00 | Model Number | 209074926 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [MediaTek MT7988A (Filogic 880) SoC] Banana Pi BPI-R4 Pro 8X/4E Wiifi 7 OpenWRT Router Board with MediaTek MT7988A (Filogic 880) SoC (Quad-core ARM Corex-A73 CPU design), onboard 4GB (4E)/8GB (8X) DDR4 RAM, 8GB eMMC and 128MB SPI-NAND flash, works as 36Gbps Wi-Fi 7 access point/router/smart gateway. It is also a very high performance open source router development boards. It is an upgraded version of the BPI-R4 router board.
- [Highly Efficient & Reliable Network] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols, delivering premium-level offloading capabilities.
- [2x 10Gbe SFP & RJ45/4x 2.5Gbe RJ45 LAN] Banana Pi BPI-R4 Pro wireless dual-band wifi router board support 1x 10G RJ45 WAN/LAN Port, 2x 10Gbe SFP and 4x 2.5Gbe ethernet with 4 Port 10/100/1000Mbps RJ45 LAN Gigabit Ethernet port, also with USB3.2 and M.2 interface, support 4G LTE/5G cellular network module and M.2 2280 NVME SSD. Providing the fastest and most reliable network connection.
- [Support WiFi 7 iPA BE14 NIC Module] Banana Pi BPI-R4 Pro 8X/4E wireless Tri-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 6E 6 NIC network card module. MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz (40MHz), 5GHz (160MHz) and 6GHz (320MHz) connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC. PHY rate: up to 13700 Mbps/9500 Mbps. QoS: WFA WMM and WMM-PS.
- [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 2x 10Gbe SFP Optical ports, 1x 10G RJ45 WAN, 1x 10G RJ45 LAN, 4x 2.5Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slots, 3x M.2 KEY-B connector for 5G/4G module, 2x M.2 KEY-M connector for M.2 2280 NVME SSD, 2x mini PCle slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO header, supports UART, I2C, SPI, PWM, I2S.
- [Widely Application Scenarios] Banana Pi BPI-R4 Pro 8X/4E Wifi Router Board can be applied to Internet Service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home Security Gateway, Home Automation, Nas device, Smart IoT Gateway, Gaming Wifi Routers, Network and Communication Applications. A wide range of application scenarios allows you to envision a fast network environment.
- [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
