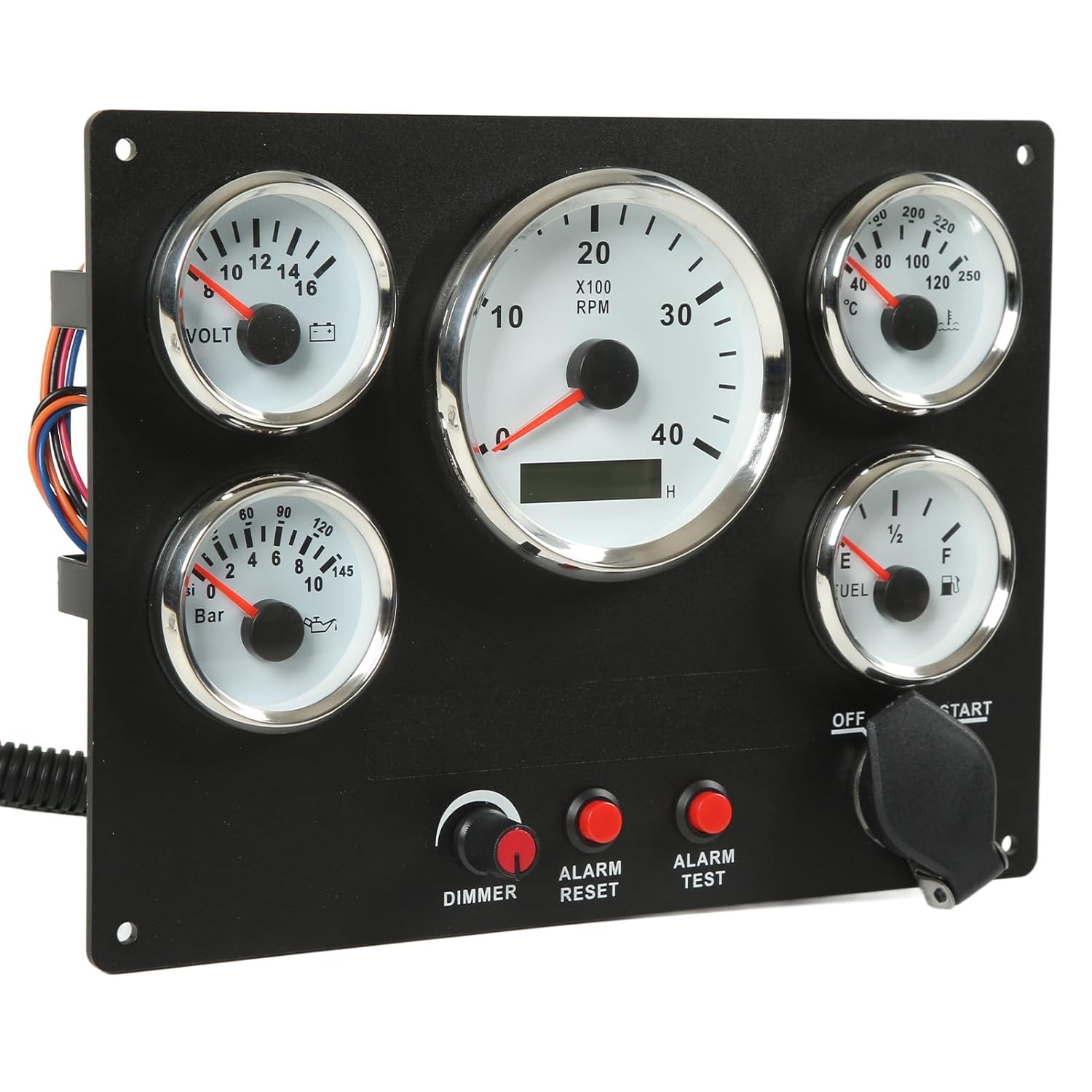

FILFEEL Marine Instrument Panel 5 Gauge Set with Tachometer Fuel & Temp Oil Pressure Voltmeter White Dial (White Dial)

1. 5 Gauge Set: The dash panel has 5 meters, 85mm tachometer can reveal engine speed 0‑4000RPM, 99999.9H timing; 52mm water temp meter shows water temperature 100‑250℉; 52mm fuel level meter shows tank oil volume F‑1/2‑E; 52mm oil pressure meter can show tank oil pressure 0‑10Bar; 52mm voltage meter can show battery voltage 8‑16V. 2. Multifunctional: The instrument panel has multifunctions, dimmer alarm reset or test; engine volt, engine oil press, coolant temp, fuel, gear oil press, seawater flow, water in fuel and other functions. All 5 gauges are with red backlight and red LED needles, so you can clearly view each parameter even at night. 3. IP67 Protection: The multifunctional panel is made of aluminum alloy panel, 316L stainless steel front cover bezel, antifog curved transparent lens, industrial grade electronic components and structural parts, can withstand mechanical shock and vibration, will not rust, even in and alkali, wet environment can also be used normally. 4. Accurate Stepping Motor: All 5 meters use pulse motor to drive the pointer to indicate the corresponding scale, with high accuracy and easy to use. Adopt ultrawide working voltage design, long term working voltage: 9‑32V, up to 36V (≤1 minute), working current ≤100mA, ultra low power consumption. 5. Firm Installation: The back harness connectors of the multifunctional instrument panel is equipped with snaps to ensure a solid connection between the instrument and the harness, so that it can work reliably even when used in strong vibration. 6. Wide Application: The marine instrument panel is easy to install, only need 240 x 180mm/9.45 x 7.09in unit area, can be used for engine, generator set, caravan, yacht, fishing boat, ship, engineering machinery, agricultural machinery, modified car and other fields. Specification: Item Type: Boat Instrument Panel Material: Aluminum alloy+ABS+stainless steel+tempered glass Function

• 【Comprehensive Set】 - This 5-gauge boat instrument panel combines essential measurements in one compact design. Featuring an 85mm tachometer, it accurately tracks engine speed from 0-4000 RPM, ensuring optimal performance monitoring during your marine excursions. The additional 52mm gauges provide real-time readings for temperature, fuel , oil pressure, and battery voltage, catering to your boating needs.
• 【Multi-Functionality】 - Our marine instrument panel incorporates versatile features, including a dimmer function, alarm reset, and various monitoring capabilities. With precise indicators like engine volt, oil pressure, coolant temperature, and fuel levels, you have a complete overview of your vessel's performance. The vibrant red backlight and LED enhance visibility, ensuring you remain informed even during night navigation.
• 【 IP67 】 - Crafted from aluminum alloy and 316L stainless steel, this instrument panel is designed to mechanical shocks and factors. The antifog curved lens and robust build ensure reliable performance in harsh marine conditions, guaranteeing essential functionality even when submerged up to meter underwater.
• 【Accurate Readings】 - Each gauge operates with a high- stepping motor, ensuring accurate readings across various parameters. Designed for longevity with an ultra-wide working voltage of 9-32V, these gauges remain efficient under a broad of conditions, with incredibly low power consumption for prolonged use, minimizing upkeep and maximizing reliability.
• 【Easy Installation】 - Installation is straightforward, requiring just a 240 x 180mm (9.45 x 7.09in) -out for seamless integration into your dashboard. Our panel features securely connected harnesses that adapt expertly to vibrations, making it suitable for a variety of applications, including yachts, fishing boats, and agricultural machinery, ensuring types of operators can from its use.
