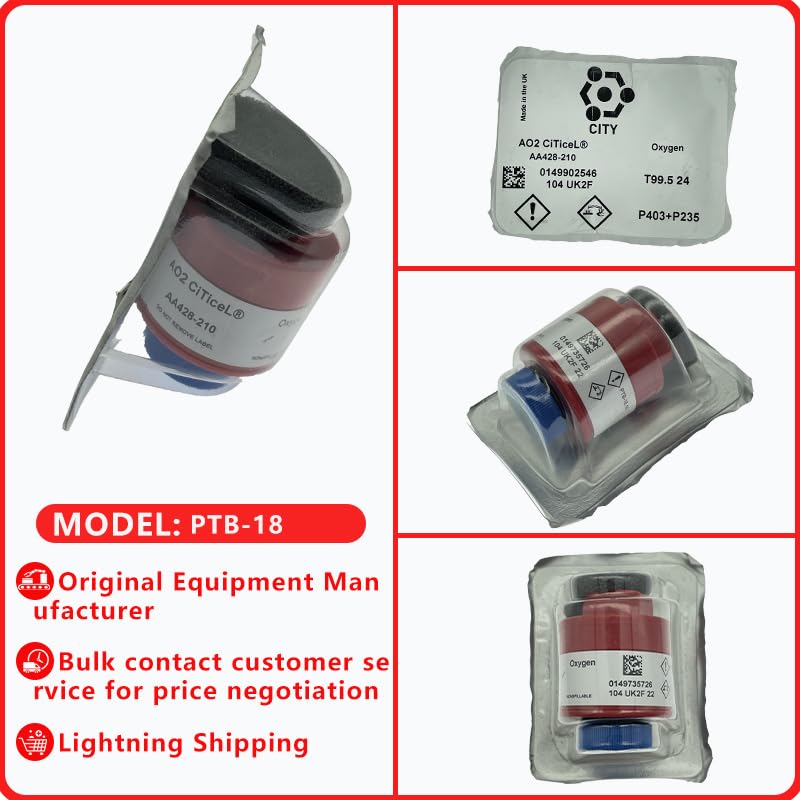

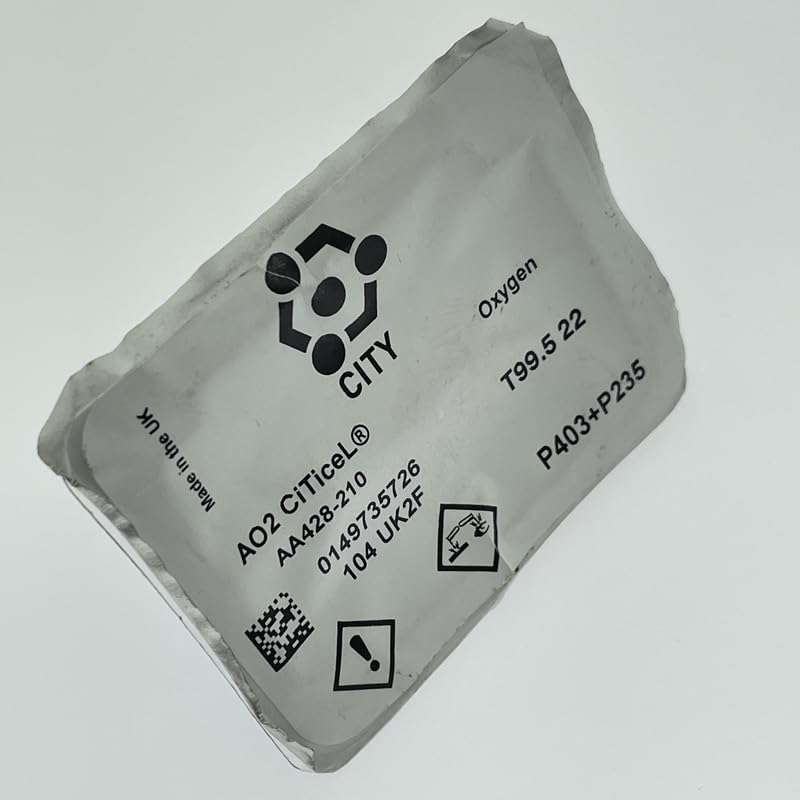

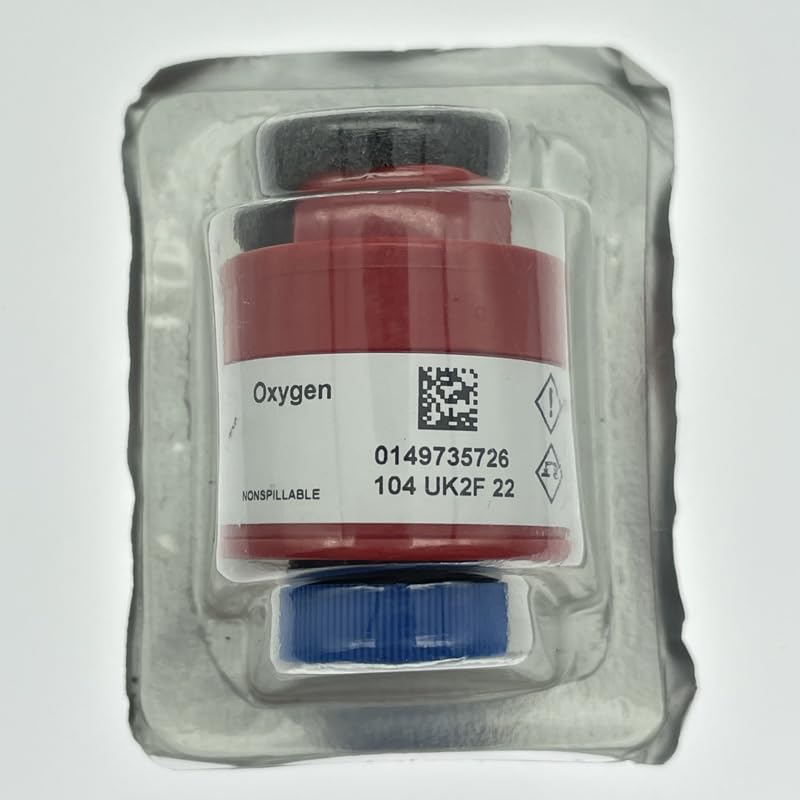

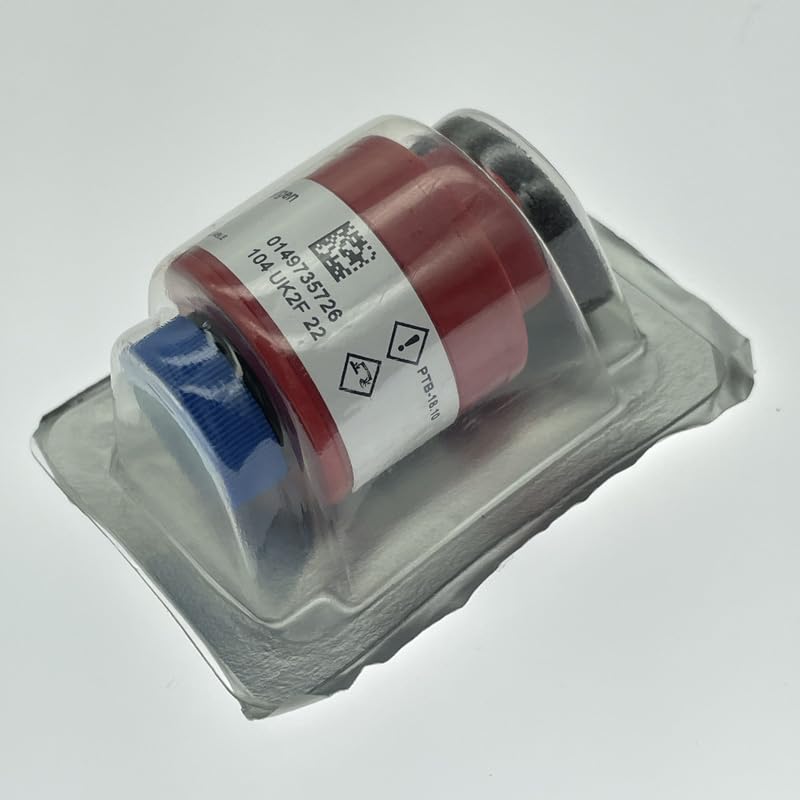

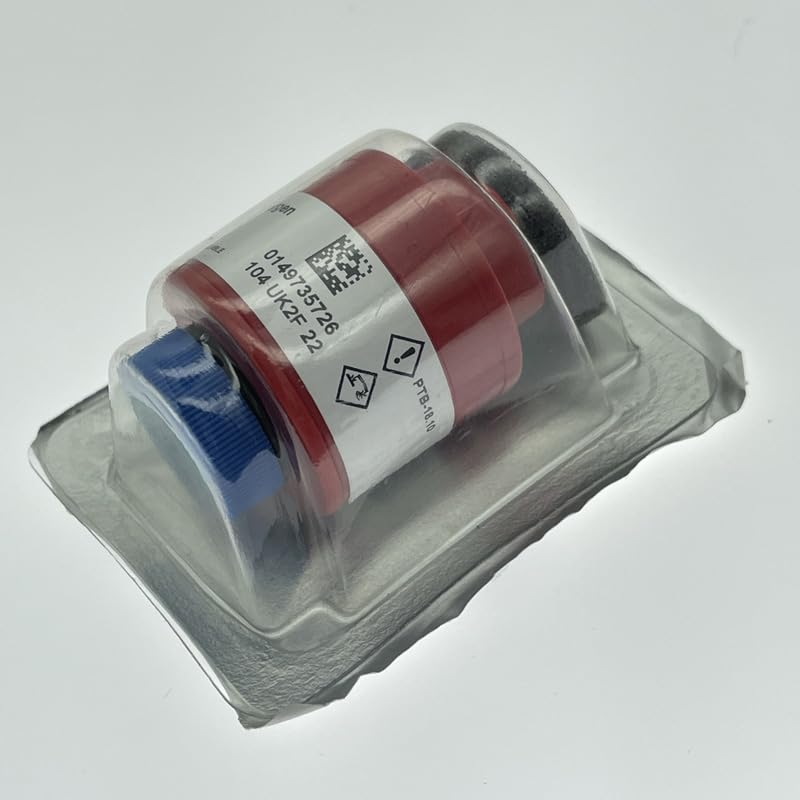

for City AO2 PTB-18.10 Oxygen Sensor O2 Gas Sensor AO2 CiTiceL

Output in air 9-13mV· Range 0-100%02· Accuracy 0.01%02The expected service life is 360000%02 hours at 20 ° C, 40C286000%02 hours, or two years in the air at STP.·T90 Response time <5 seconds ·T99.5 response time <40 seconds · 100% oxygen 100±1% linear 0-100%02 in the signal.Zero offset values <20μV temperature range -20℃-+50℃· Temperature compensation <2% variation form 0℃ to 40℃(as shown in the figure)· Pressure difference range 0-500mbar Max.Absolute pressure range 500-2000mbar relative humidity range 0-99% non-condensable.· Long-term output drift <10% signal loss/year ● Recommended load negative min 10kΩThe output of the A02 sensor varies with temperature, but gradually collects thermistors to compensate for these changes. Thermistors are used to give the A02 a very stable output over a wide temperature range.

• Part Number: AO2 PTB-18
