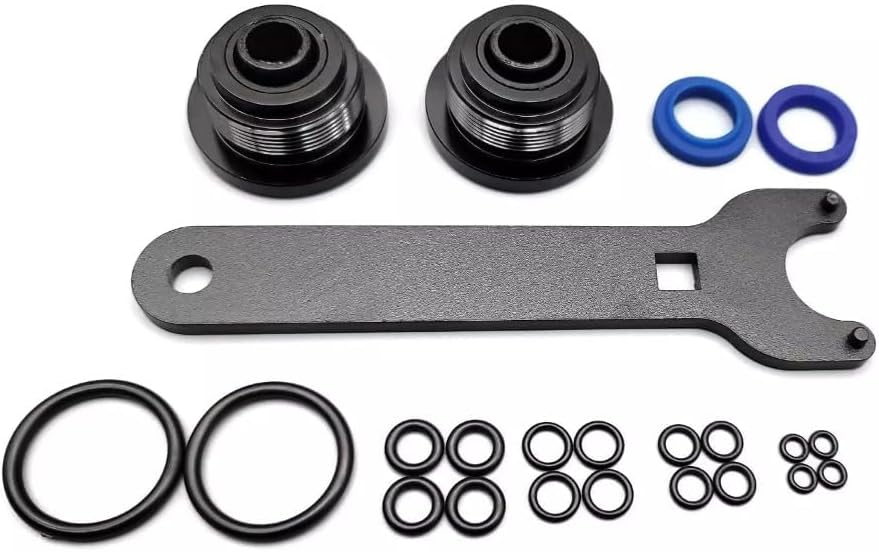

Front Mount Hydraulic Steering Cylinder Seal Kit and Bleed Kit Replacement for Seastar Hydraulic Steering Systems

Instructions:1. Attach bottle to helm reservoir (do not pierce bottle)(do not let bottle run empty)2. Connect bridge tube to bleed fittings on steering cylander and loosen/open fittings.3. Use helm to pump fluid through system by turning the wheel in one direction. Air bubbles will be pushed to the reservoir at the helm.Using Instruction:1. Loosening the Seal Gland. Turn the outboard hard to port; place the pin wrench in the holes of a gland. And use a 5⁄8-inch box wrench on the nut on the port end of the piston rod. (NOTE:Turn counterclockwise on the pin wrench with opposite pressure on the box wrench to loosen the seal gland)2. Removing the Support Bracket. Use a 3/4-inch socket wrench to remove the nut and washer securing the support bracket to the support rod. (Do the same to the piston rod nut and washer. ) Use wrenches on the opposite ends to keep the rods from turning. With hardware gone, pull off the support bracket.Use the pin wrench to remove the Old Seal Gland.3. Install the New Seal Gland. Place the tapered guide tool from the kit on the end of the piston rod and lubricate it and the piston rod well with oil or grease. Carefully slide the new seal gland over the guide and onto the piston rod until it reaches the cylinder. Screw the seal gland into the cylinder, but don't tighten it yet. Remove the guide tool; it is not part of the final assembly, but you will need it for the other side.4 . Reinstall the Support Bracket. Reconnect the support bracket to the support rod and piston rod and replace the washers and nuts, tightening the nuts against the washers. You may need to use wrenches on the opposite nuts to tighten sufficiently.5 . Tightening the New Seal Gland. Use the pin wrench to tighten the new seal gland while using a 5⁄8-inch box wrench on the starboard end of the piston rod for counter torque.

• The Bridge Tube Now Comes with Hose Clamps for a Perfect Fit.
• Easy to install to save your time. One Person Easily Controls the Bleed Process from End to End.
• Changing out Fluid Bottles Is Quick and Clean. Entire Steering System Remains Sealed During the Bleed Process from End to End, Ensuring That Fluid Goes Where It Is Supposed to Go.
• Failure to Replace a Damaged Steering Cylinder Will Result in Seal Failure and Possible Loss of Steering.
• If have any question about this item, please send message with us, we will try to answer all the question you may
