NovelBee 16.2" x10.5" Rectangular Deck Hatch,Aluminum Alloy Boat Porthole Window,Push Out Opening Portlight Window for Boat Yacht RV

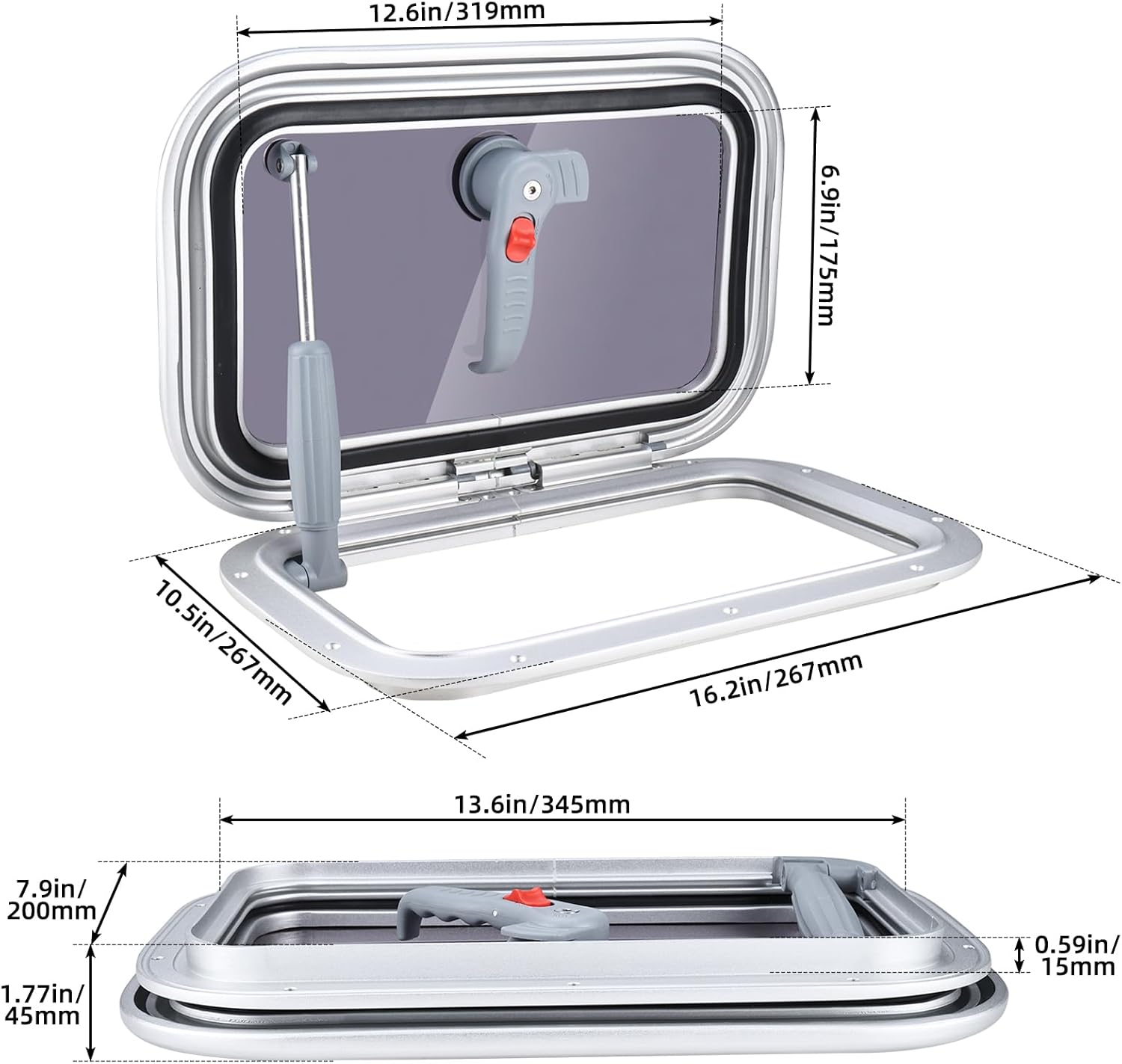

Port hole window shape:rectangle Deck thickness:approx 15mm Portlight total height:approx 42.5mm Port light window size:approx.12.6"x6.9" / 319x175mm Porthole mounting hole size:approx.13.6"x7.9" / 345x200mm Porthole cut-out size:approx.13.7"x8" / 347x202mm Porthole extemal size:approx.16.2"x10.5" / 412x267mm Opening portlight angle: 0-90 degrees Boat porthole material:aluminum alloy+nylon+acrylic+ rubber+316 stainless steel The smoked gray acrylic glass is able to mitigate the effects of glare from the sunlight reflecting off the sea surface The push out opening mechanism with switch lock handle and fixed support rod allows for the opening range of 0‑90 degrees Marine hatch window frame is equipped with waterproof rubber gaskets,providing complete sealing and water resistance Constructed with a strong aluminum alloy frame,boat porthole window is highly durable and resistant to harsh marine and outdoor environments Versatile application:square hatch window can be used on boats,yachts,ships and RVs Opening port light window can be used for portholes,sunroofs,ventilation,storage compartments,roofs or any location where a window is needed Package 1 x Rectangular Deck Hatch Please notice 1.Please measure the size before purchasing 2.Please allow slightly difference due to manual measurement 3.Installation is slightly difficult,it is recommended to find a professional engineer to assist in the installation

• 16.2"x10.5" / 412x267mm Retangular Deck Hatch
• Deck thickness:approx 15mm;Hatch cut-out size:approx.13.7"x8" / 347 x 202mm
• Boat porthole material:aluminum alloy+nylon+acrylic+rubber+316 stainless steel

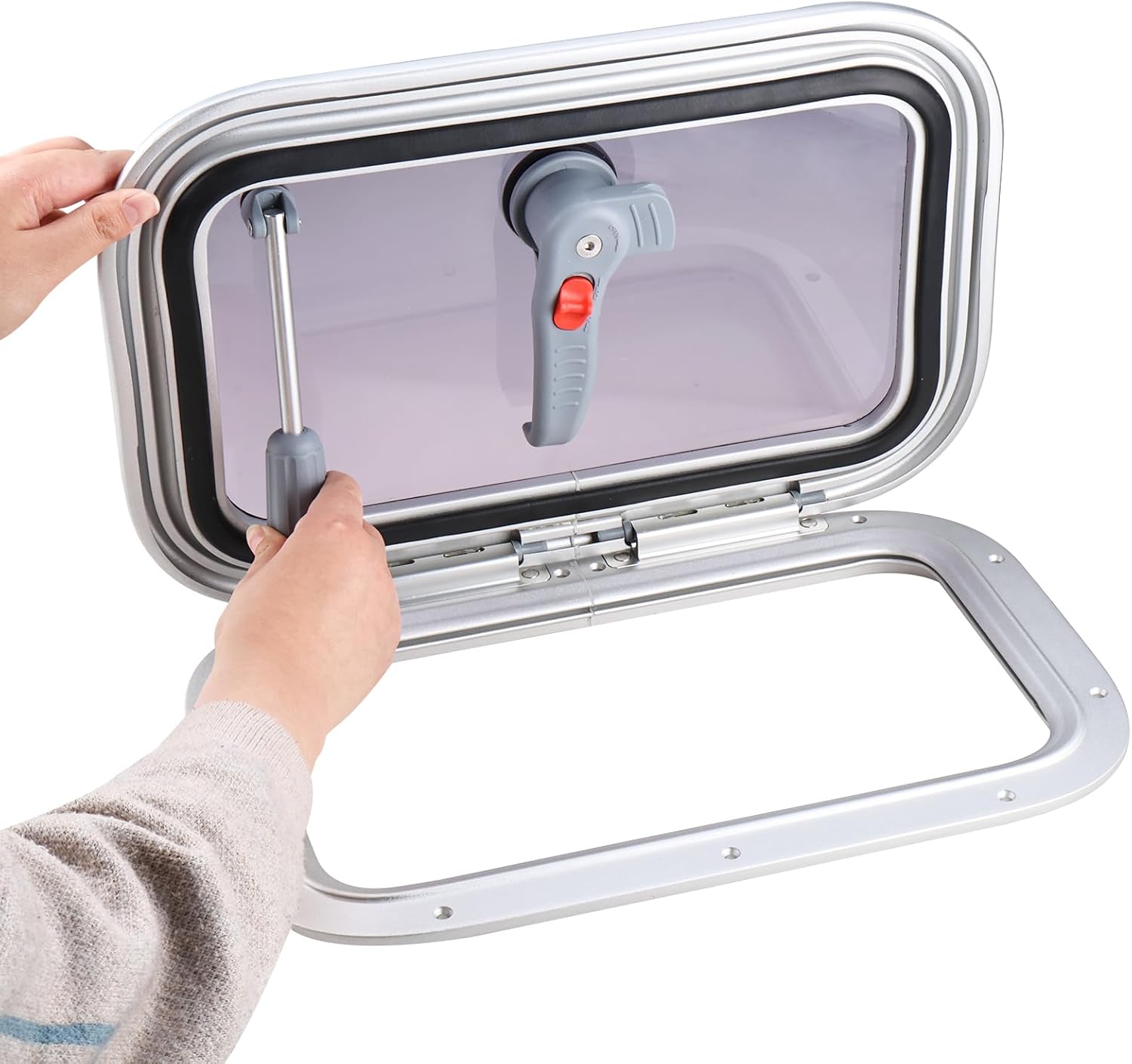

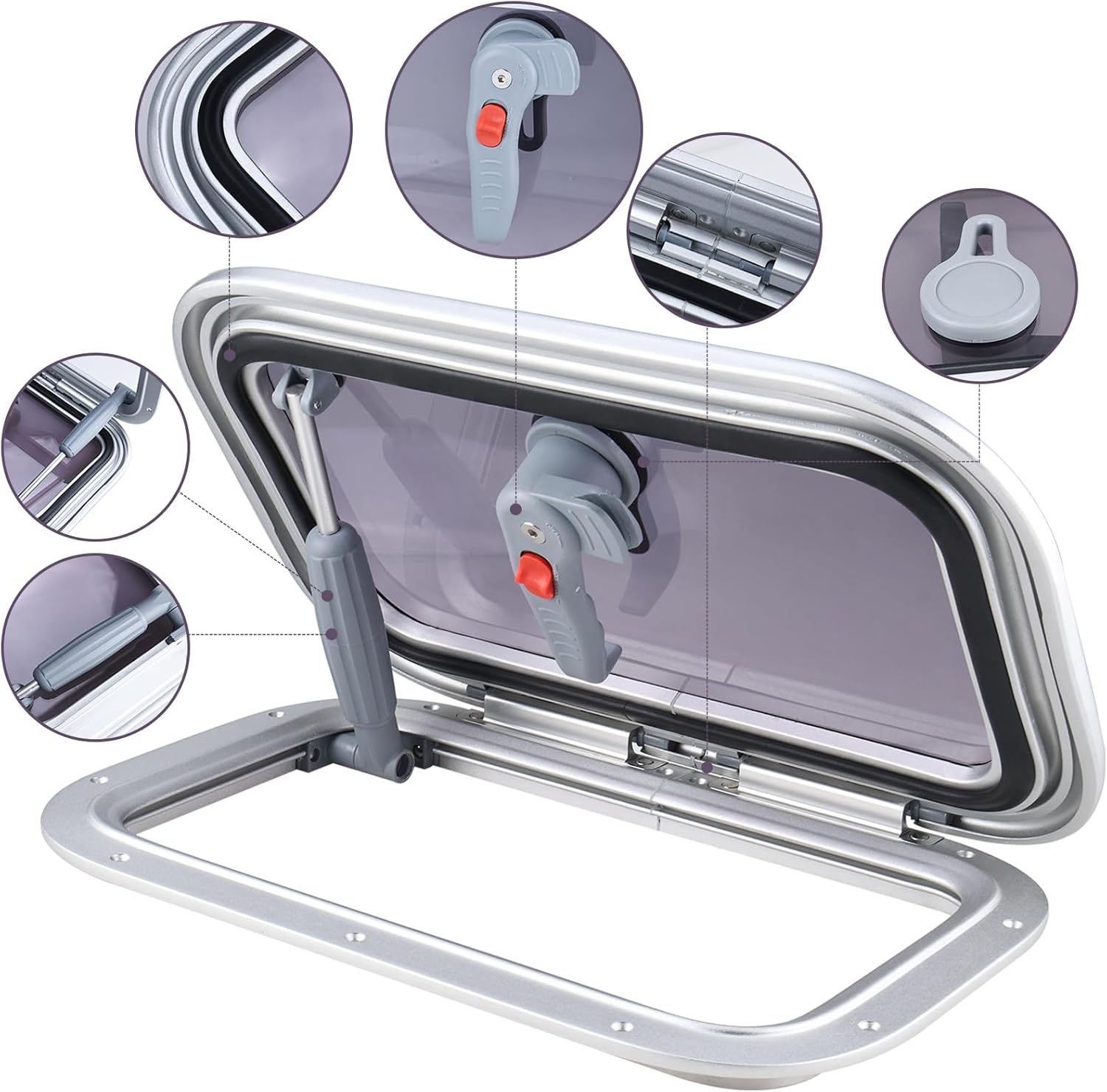

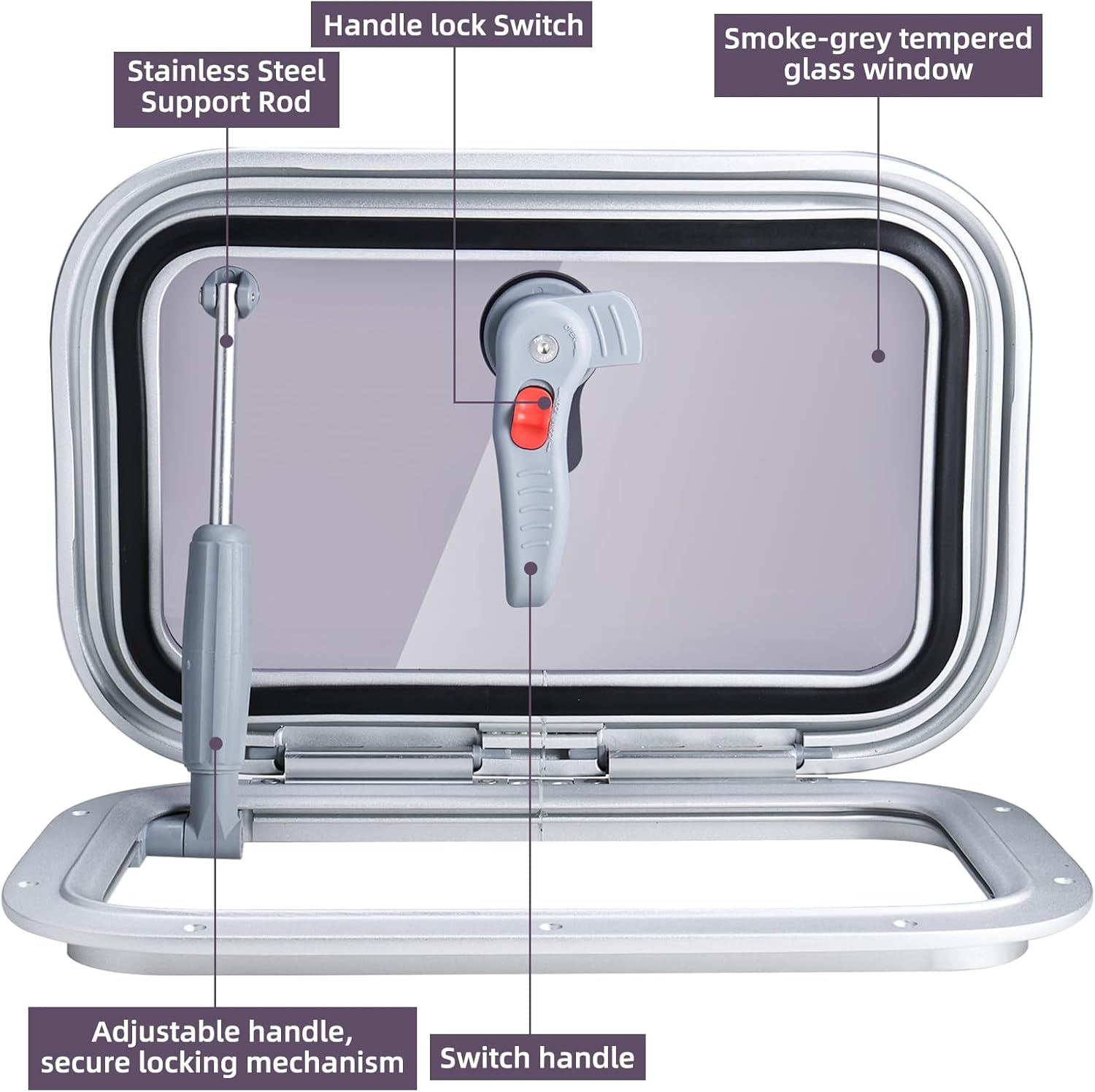

• The push out opening mechanism with switch lock handle and fixed support rod allows for the opening range of 0‑90 degrees
• Opening portlight window can be used for portholes,sunroofs,ventilation,storage compartments,roofs or any location where a window is needed
