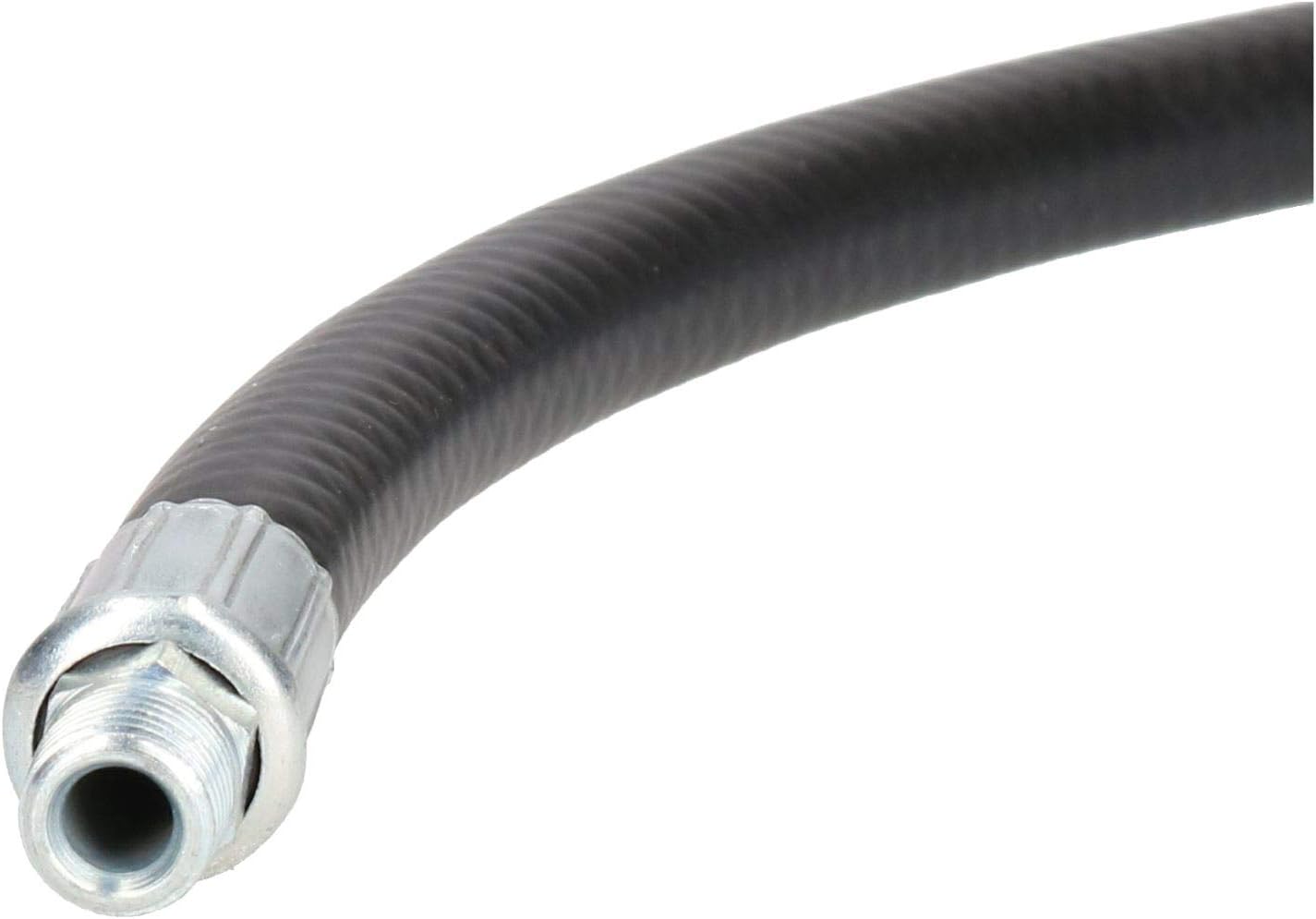

PCL Whip Air Hose 0.6m x 10mm XF Male Fitting 1/4" BSP Spray Leader HA2132

Perfect for sprayers as it allows for extra movement and take some of the weight off the gun Air Tool Whip Hoses which distances an air tool from its air supply to prevent vibration is highly recommended by Health and Safety. The vibrations caused in the use of air tools make a coupling connection subject to Health & Safety Regulations. See ISO 4414:1998 and EN 983:1996 for safety requirements covering the installation and use of pneumatic equipment. A Health and Safety Guide has been produced which covers the use of pneumatic equipment. The Health & Safety Executive Guide HS(G) 39 states "requirements for quick acting couplings apply to most percussive and vibrating air tools, which may be fixed or handheld. If a quick acting coupling socket is fitted at the hose end adjacent to the tool, the plug should not be screwed directly into the inlet port but should be fitted onto a short isolation hose (0.5m to 1m long), thus isolating the plug and socket from the tool vibration." The International Standard (ISO 6150:1998) recommends a minimum of 300mm of flexible hose to be used between a vibrating tool and a quick acting coupling. Genuine PCL: HA2132 This is for an anti whip hose with XF fitting built inSpecification Hose Inside Diameter: 10 mm / 3/8 in Hose Outside Diameter: 17 mm Hose Length: 0.6 m / 2 ft Temperature Range: -10°C to 60°C Working Pressure: 21bar Burst Pressure: 63 bar One end has a male 1/4" BSP Thread One end has a crimped XF Male Fitting

• Working Pressure: 21bar
• Hose Inside Diameter: 10 mm / 3/8 in
• Hose Length: 0.6 m / 2 ft
• One end has a male 1/4" BSP Thread
• One end has a crimped XF Male Fitting
