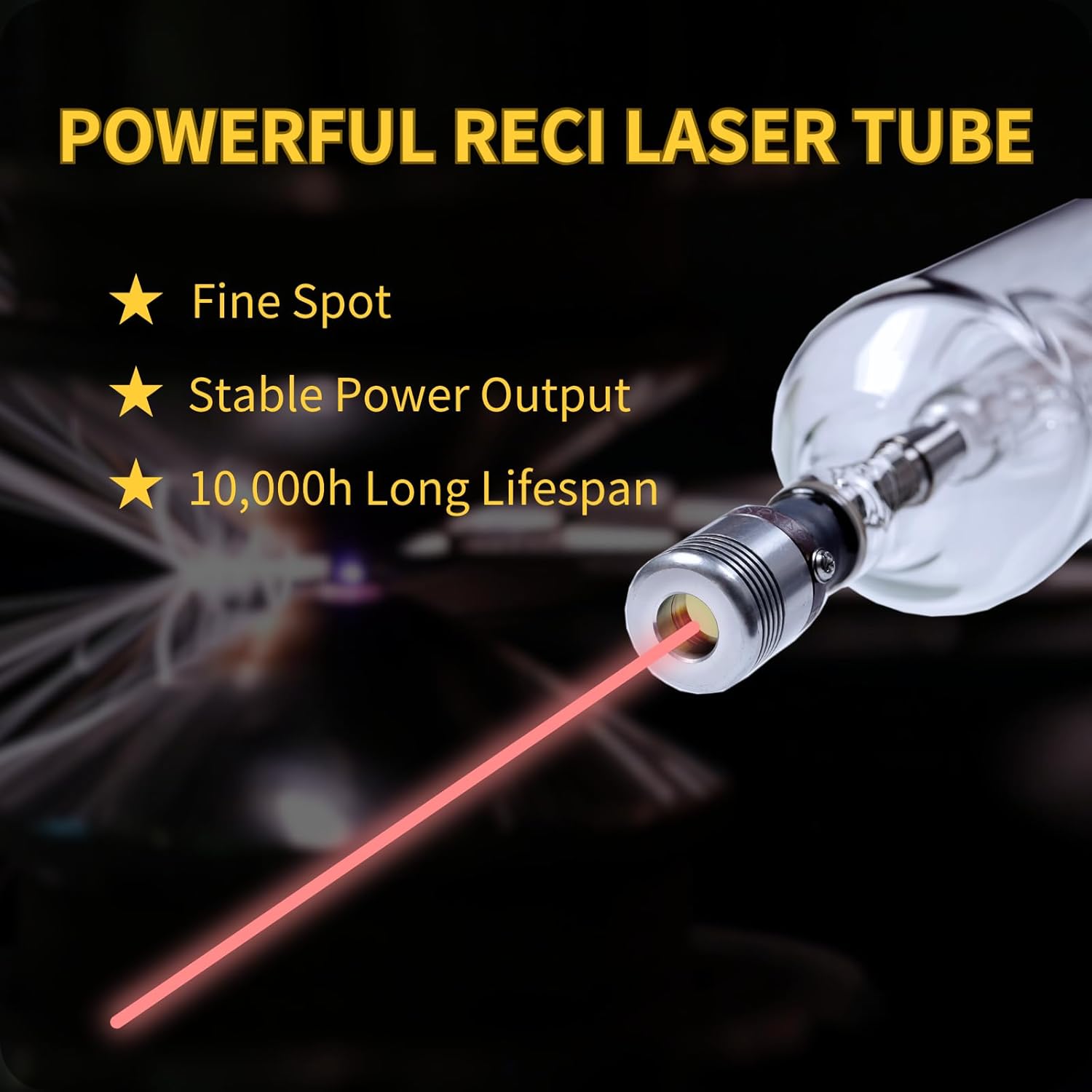

RECI 100W CO2 Laser Tube W4S4 (Peak 130W) 1400mm Duty Free for Laser Engraving Cutting Shipping from US, W4(S4) 100-130W (US Stock.)

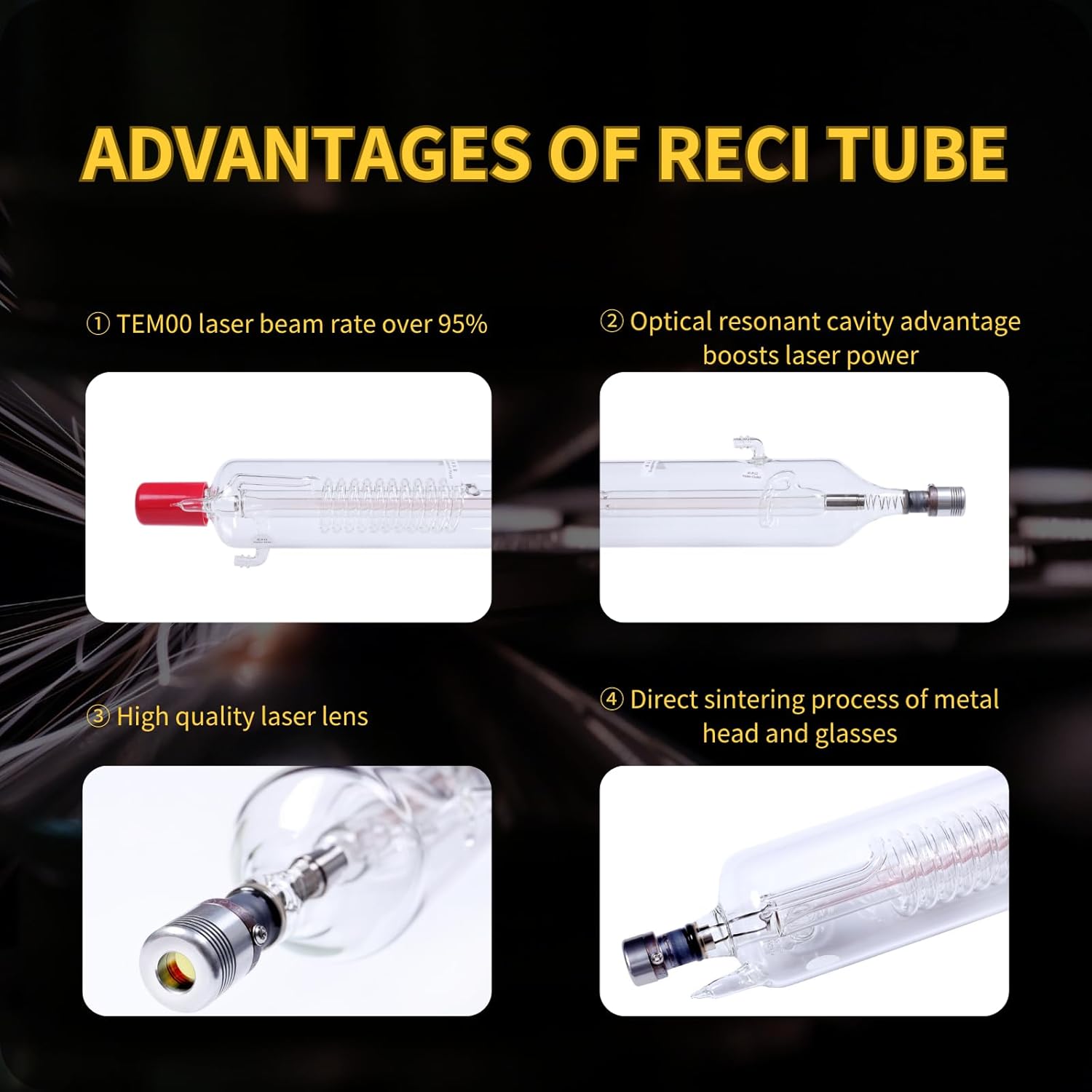

Features: Stable power, less attenuation Higher cutter efficiency, energy concentration. Longer service life, longer Maintenance period. Better service, free replacment for damage and fault(not including improper operation). Extended tube can protect lens against dust. Installation 1. Connect the positive and negative pole of laser tube and power supply, and insulate it properly. 2. Connect the inlet and outlet of the laser tube. 3. Turn on the water circulation, so that the cooling water through the entire water line, avoid air bubbles, otherwise there is a risk of burst pipes. 4. Start inching, the laser tube emit laser light, adjust the position of the laser tube so that the spot hit in the middle of the reflective mirror. 5. If the light path is not correct, adjust the position of the laser lens until light path adjustment is complete. 6. When the laser tube is first used, generally adjust 50%-60% of the power to work (can be adjusted according to the actual use of the situation). RECI Laser Tube Light Problems Self-checking First of all, please open the back cover to check the laser light, the normal light color is light pink. If there are no issues with the light, but the processing effect is not ideal, please check the following aspects: A. The output lens of the laser head is contaminated, please gently wipe with anhydrous alcohol. B. Laser lens is contaminated, including 3 pieces of reflective mirrors and 1 piece of focus lens, please wipe with anhydrous alcohol or replace them. C. The optical path is not adjusted well, the light does not shoot out from the laser head or the optical path is not perpendicular, please adjust the optical path again. D. Laser power supply is damaged, although the laser tube is bright but weak, please adjust to the maximum light intensity, such as the ammeter value only shows below 10mA, the power supply is damaged, please replace the power supply. E. Cooling system problems, water circulation is too slow, the laser temperature is too high, resulting in poor cooling effect, check the entire water circuit is not blocked (water pipe folding), the water pump or water chiller is damaged or not, please repair in time!

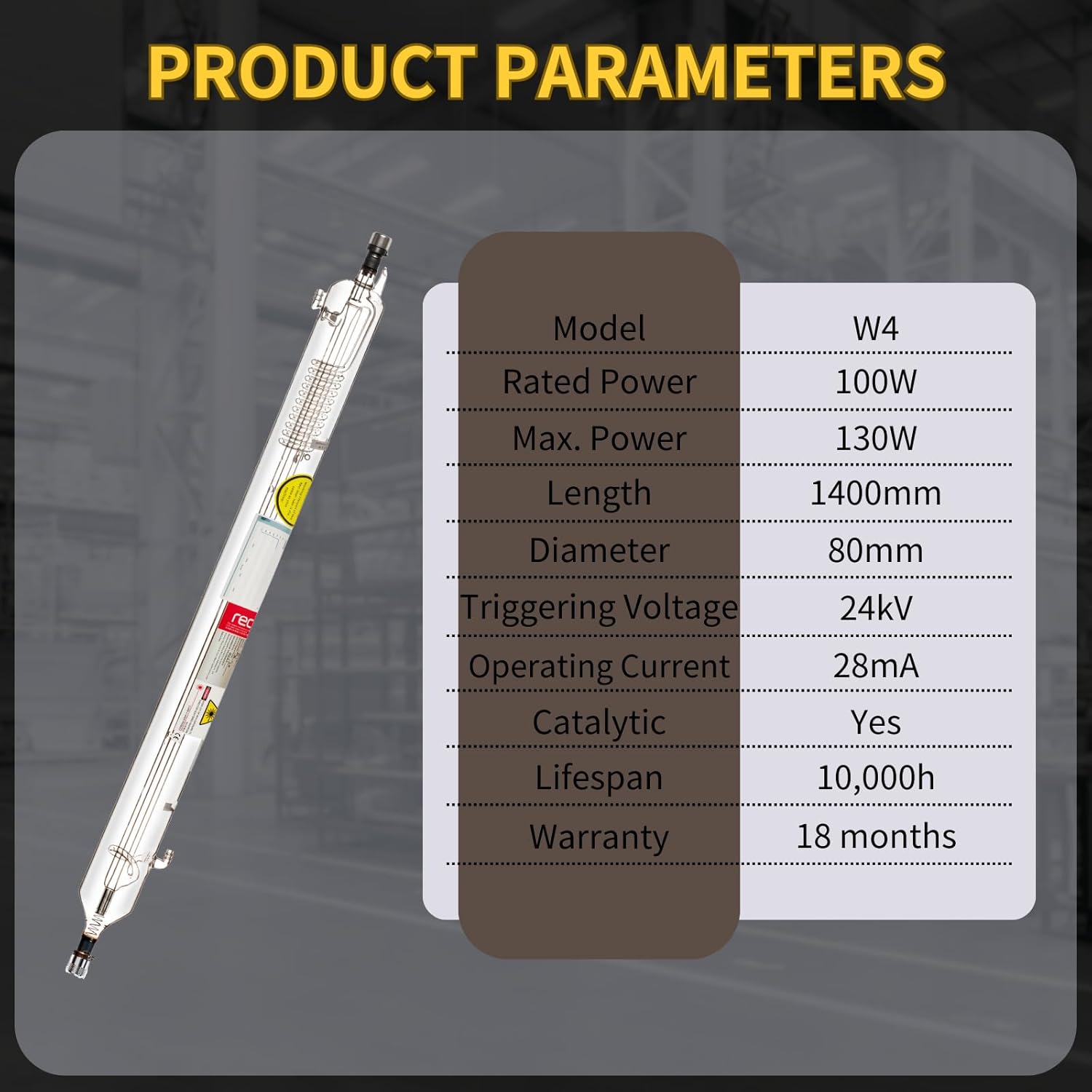

• RECI W4 Laser Tube: Rated Power 100W Max. 130W, Diameter: 80mm, Length: 1400mm. Please make sure that the laser machine has enough space to accommodate the W4 CO2 laser tube.
• Long lifespan: The RECI laser tube lifespan up to 10,000 hours,it ensures continuous machine operation and minimizes downtime. The power range is 100W - 130W,this W4 laser tube with high quality, stability and performance. Higher efficiency for the laser engraving and cutting.
• Tips: The recommended current for the RECI W4 laser tube is 26mA. The long-term operating current should be controlled at 28mA or below. The maximum operating current must be controlled at 30mA or less. RECI W4 water-cooling tips: The coolant is pure water with a flow rate of 3-5 liters per minute and a standard water temperature of 10℃-50℃.
• The W series laser tubes are protected from dust by a metal cap and a red plastic cap on each end. You can remove the metal caps at any time to clean the laser lens.
• Wide Application: Reci laser tube possesses higer power than the same length laser tube. It is great for acrylic, cardboard, ceramics, fabric, glass, leather, paper, stone, wood and etc.
• NOTE: Each laser tube is tested before shipping and we will provide a safe packaging. If transportation damage, please contact our customer service to replace the defective one via Amazon. It is recommended to use a laser power supply that matches the laser tube.
