SZW26/LW26-20 3 Position 9 Poles 36 Terminals 20A Transfer Changeover Cam Universal Selector Switch 64X64 48X48 mm Panel(1 0 2 Panel 48X48mm)
Product details
| Management number | 215354739 | Release Date | 2026/04/12 | List Price | $22.56 | Model Number | 215354739 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

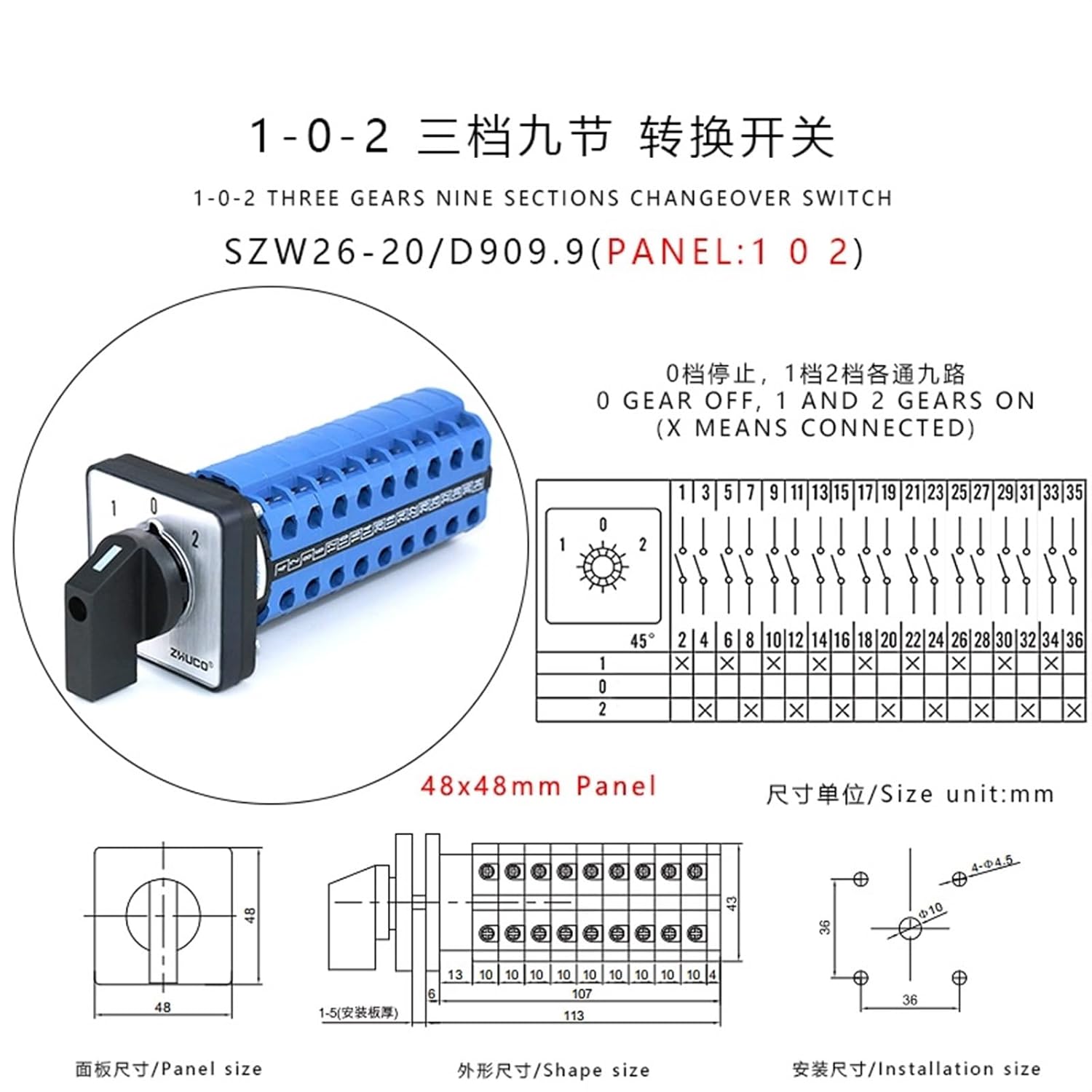

SwitchesSZW26/LW26-20 3 Position 9 Poles 36 Terminals 20A Transfer Changeover Cam Universal Selector Switch 64X64 48X48 mm PanelDescription1.Product Name:SZW26/LW26-20/D909.9 20A 9 Phase Universal Rotary Changeover Cam Switch2.Specification:Lacthing Selector ; Ui: 660V, Ith: 20A ; 9 Phase 36 Terminals3 Position (1-0-2)3.Rating :AC-15: Ue 440V Ie 20ADC-13: Ue 240V Ie 1A4.Panel size:48 x 48 mm,Install Size:36 x 36mmPanel size:64 x 64 mm,Install Size:48 x 48mm
- Switches
- SZW26/LW26-20 3 Position 9 Poles 36 Terminals 20A Transfer Changeover Cam Universal Selector Switch 64X64 48X48 mm Panel
| Color | 1 0 2 Panel 48X48mm |
|---|---|
| Model | KBWPCQMPKW |
| Brand Name | KBWPCQMPKW |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | KBWPCQMPKW |
| Number of Items | 1 |
