T3 T4 Universal Turbo 0.63 A/R V Band 420HP 4/6 Cly + 2.5" 64mm 8PCS PIPING Kit Engine Kits

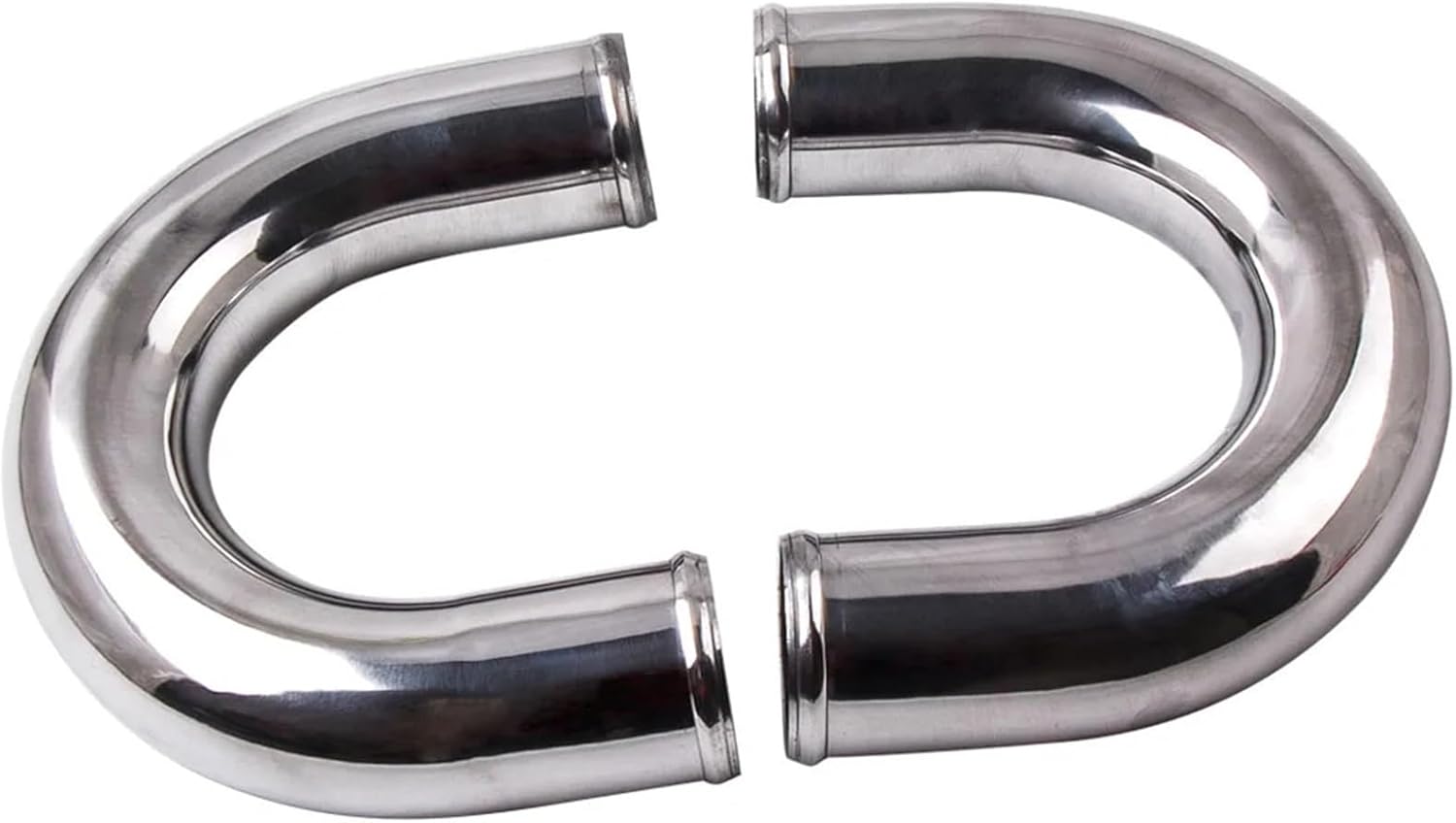

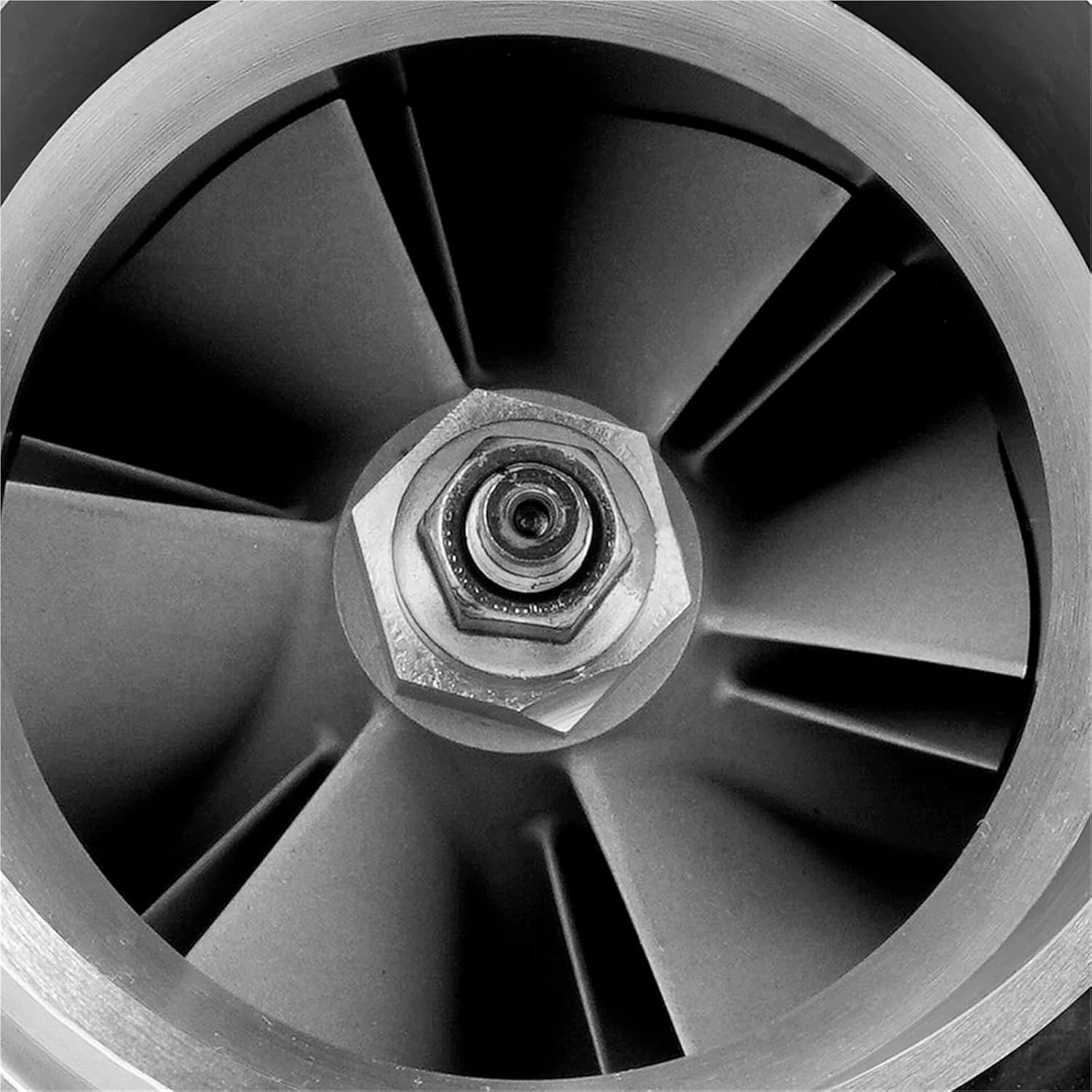

Applicationfor all 4 or 6 CYL, 1.5L-2.5L enginesHorse Power: Capable of Boosting Horse Power up to 420HPCooling Type: Oil CooledSpecificationExhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange PatternsExhaust Outlet (Downpipe) Flange: V-Band FlangeCompressor:Trim: 48.1A/R: 0.5Inducer: 52.7mmExducer: 76mm----------------------Turbine:Trim: 74.2A/R: 0.63Inducer: 64.8mmExducer: 55.8mm----------------------Turbine exhaust outlet : 79mmTurbine exhaust inlet:44.7mm/85.8mmCompressor outlet:78 mmCompressor inlet:51.5 mmBearing: Journal BearingInternal Wastegate: YesPiping Pipe KitPipe Thickness: 1.8mmPipe length: 18''Package Including 2x 90 Degree Aluminum Pipe 2.5" 2x Straight aluminum pipe 2.5" 2x 135 Degree Aluminum Pipe×2 2.5" 2x U Aluminum Pipe×2 2.5" 6x Straight Silicon Hose 2.5" (Blue ) 2x 90 Degree Silicone Hose×2 2.5"(Blue ) 16x Clamps 2.5" 1x Turbo and gasketsas the picture you click when you order, if you lick turbo, you can get the turbo, if you click pipe, you will get the Aluminum PipeTurbo type : Universal hybrid turbo for all 4 6 Cylinder engineProduct Note: : Due to the light and different screen display,the picture and product maybe slightly differentProduct Type: : This is aftermarket replcement part.Application : for all 4 6 CylTool Type : Oil cooledDear customer, hello. To ensure that the accessories can be used properly, if convenient, please leave us a message with your model year or chassis number and product model. I will match suitable accessories for you based on your information. Wishing you a happy life, thank you

• High-performance T3 T4 turbocharger designed for 4 and 6-cylinder engines, delivering up to 420HP.
• Features a 0.63 A/R V Band design for efficient airflow and boost performance, enhancing engine power and responsiveness.
• Includes a complete 2.5" 64mm piping kit with 8 pieces for easy installation and optimal fitment.
• Perfect for performance enthusiasts looking to upgrade their vehicle's turbo system for improved acceleration and horsepower.
• Durable construction ensures long-lasting performance and reliability under high boost conditions, making it ideal for racing and street applications.
